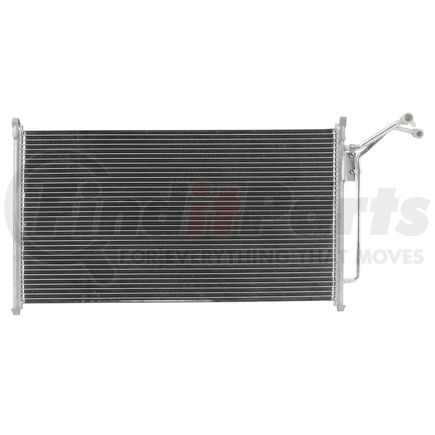

Need help? We're here!
(888) 312-8812 Login SignupREACH COOLING 31-4013 A/C Condenser
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
REACH COOLING 31-4013 Part Description
Manufacturer
Product Description
A/C Condenser
Application Summary
Buick:78-81 Century/78-87 Regal; Chevrolet:78-87 Monte Carlo; Oldsmobile:80-87 Cutlass/78-84 Cutlass Calais/78-87 Cutlass Salon/78-88 Cutlass Supreme; Pontiac:82-86 Bonneville/78-80 Grand Am/78-87 Grand Prix
Features & Benefits
- Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
- Reach condensers feature a parallel flow design to increase cooling efficiency.
- Reach condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Our fin edges are folded for increased stability and heat disbursement properties.
- All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
- Our tubes feature a 5mm fin height which allows for a greater cooling surface.
- All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
- Our condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Our condensers feature a parallel flow design to increase cooling efficiency.
No Shipping Restriction
condenser, condenser for car, ac condenser unit, ac condenser car, condenser ac
REACH COOLING 31-4013 Specifications
Product Attributes
| Core Thickness | 15.9 MM |
| Condenser Core Type | Parallel Flow |
| Mounting Hardware Included | Seals and Gaskets not included |
| Core Width | 360.4 MM |
| Inlet Fitting Type | Male O-Ring |
| Core Length | 673.1 MM |
| Includes Drier | No |
| Outlet Fitting Type | Male O-Ring |
| Core Length | 26.5 IN |
| Core Thickness | 0.625 IN |
| Core Width | 14.187 IN |
| Core Material | Aluminum |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8415909000 |
| Warranty Time | 24 |
| Harmonized Tariff Code (HTS) | 8415908045 |
| Country of Origin (Primary) | CN |
| Warranty Distance | 24000 |
| Warranty Special UOM | TX |
| Warranty Time UOM | MO |
| UPC | 06949521720292 |
| VMRS Code | 001001062 |
REACH COOLING 31-4013 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 4013 |
| ACDelco | 156983, 156287 |
| AIRCON | AG932B |
| APDI | 7014013 |
| APDI RADS | 7014013 |
| Advance Auto Parts | 2035 |
| American Condenser by Vista-Pro | 1022322, 1032322, P32322, P32322P |
| AutoZone | 7-4013 |
| Autokool | 4013 |
| Buick | 3037294, 3041841, 3037308, 3034294, 52485723, 3040935, 52482089 |
| CRS | AC32322, AC4013 |
| Chevrolet | 3040935, 3041841, 3037294, 3037308, 3034294, 52485723, 52482089 |
| CryoMAX | 4013 |
| DPI DataPoint Inc | 4013 |
| Delphi | CF1186 |
| Dixin USA | DX4013 |
| Everco | 7777 |
| FVP | CON4013 |
| Factory Air | CON4013 |
| Federated | 4013 |
| Four Seasons | 40367, 53985 |
| Frontera | 4013AM |
| GLOBAL PARTS DISTRIBUTORS | 4013C |
| General Motors | 3034294, 3037294, 3041841, 52482089, 52485723, 3037308, 3040935 |
| Gilmore Products | AUC4013 |
| Global Heat Transfer | 4013 |
| Keystone Auto Industries | CND32322 |
| Modine | 200035 |
| Murray Heat Transfer | 7-4013 |
| NAPA | 74013, NC4013A |
| NEW COAST | C23202 |
| Northern Factory Sales | CD32322 |
| Northern Radiator | CD32322 |
| OSC | 4013, 74013 |
| Oldsmobile | 3037294, 3040935, 3041841, 3037308, 3034294, 52482089, 52485723 |
| Omega | 24-30196, 2430196 |
| Omega Environmental Technologies | 2430196 |
| PACIFIC BEST INC. | PC4013 |
| Partslink | GM3030214 |
| Performance Radiator | 4013 |
| Platinum Pro | CND32322 |
| Pontiac | 3037294, 3037308, 3034294, 52482089, 3040935, 52485723, 3041841 |
| Proliance | 632322 |
| RadCool | 4013 |
| Rahn Industries | 32322 |
| Silla Cooling | C4013 |
| Spectra Premium | 7-4013, 74013 |
| Sunbelt Radiators Inc | SBC-4013 |
| UAC | CN4013PFC, CN 4013PFC |
| Vision | 4013 |
| Vista Pro | 2035, 632322 |
REACH COOLING 31-4013 Fits Vehicles
- Pontiac LeMans (1978-1981)
- Pontiac Grand LeMans (1978-1981)
- Pontiac Grand Prix (1978-1987)
- Pontiac Grand Am (1978-1980)
- Pontiac Bonneville (1982-1986)
- Oldsmobile Cutlass Supreme (1978-1988)
- Oldsmobile Cutlass Calais (1978-1984)
- Oldsmobile Cutlass Salon (1978-1980, 1985-1987)
- Oldsmobile Cutlass (1980-1981, 1985-1987)
- Chevrolet Monte Carlo (1978-1987)
- Buick Regal (1978-1987)
- Buick Century (1978-1981)
