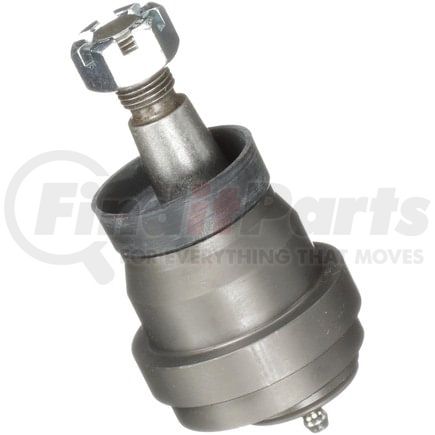

Delphi TC6133 - Ball Joint
$10399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Castle Nut Included | Yes |
| Color | Silver |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Dust Boot Included | Yes |
| Dust Boot Material | Rubber |
| Greaseable | Yes |
| Grease Fitting Included | Yes |
| Material | Steel |
| Maximum Outside Diameter | 56.10 MM |
| Mount Plate Included | No |
| Mounting Type | Press-In |
| Nuts Included | Yes |
| Stud Tapered End 1 Diameter | 15.8 MM |
| Stud Tapered End 2 Diameter | 19 MM |
| Stud Thread Diameter | 0.5625 IN |
| Stud Thread Length | 23 MM |
| Stud Threads Per Inch | 18 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Type | Premium |
| Washers Included | No |
| Width | 56.1 MM |
| Maximum Outside Diameter | 2.210 IN |
| Stud Thread Diameter | 14.29 MM |
| Stud Thread Length | 0.91 IN |
| Stud Tapered End 2 Diameter | 0.75 IN |
| Stud Tapered End 1 Diameter | 0.62 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604334010 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep TJ (1997-2006)
- Jeep Wrangler (1987-1995, 1997-2017)
- Jeep Wagoneer (1984-1990)
- Jeep Grand Wagoneer (1993)
- Jeep Grand Cherokee (1993-2004)
- Jeep Comanche (1986-1992)
- Jeep Cherokee (1984-2001)
- Dodge Ram 2500 (1994-1996)
- Dodge Ram 1500 (1994-2001)
