HDS36255 by BUYERS PRODUCTS

HDS36255 by BUYERS PRODUCTS

Part Number
HDS36255
Manufacturer
BUYERS PRODUCTS
Description

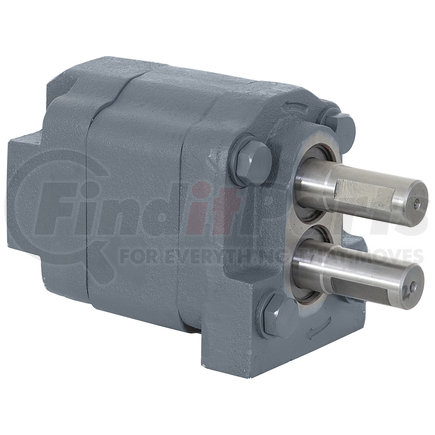

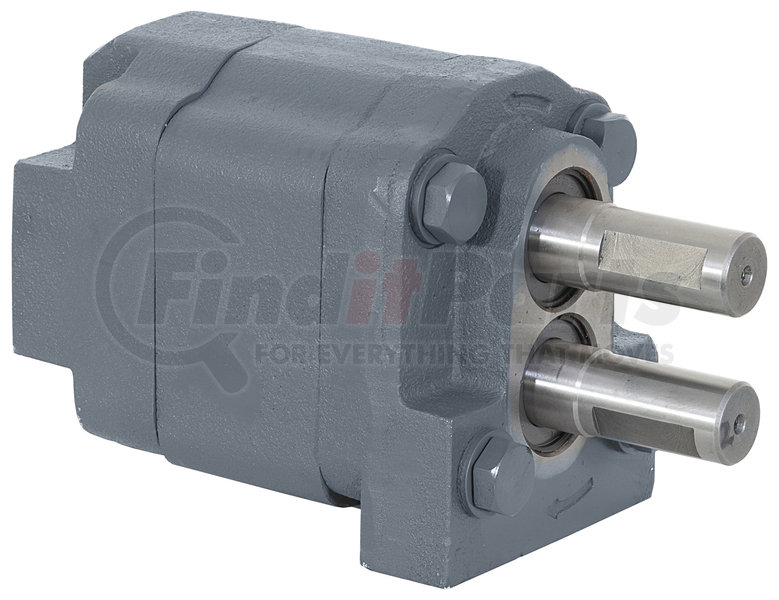

Dual Shaft Hydraulic Pump With 2-1/2 Inch Diameter Gear

details

NO STOCK AVAILABLE

We cannot fulfill any orders for this part at this time, please check back later

Sometimes we may have similar parts for sale, click the button below to see if anything matches.

SEARCH FOR HDS36255 ALTERNATES

BUYERS PRODUCTS part description

Dual shaft design is ideal for powering refuse truck operations.

Tough cast iron construction.

Can handle continuous-duty maximum operating pressure of 2500 PSI.

The Dual Shaft Hydraulic Pump from Buyers Products is excellent for powering continuous duty operations such as refuse collection.

The pump is built tough of cast iron. A double shaft design allows for a maximum operating pressure of 2500 PSI while doing continuous duty. It can reach a maximum 1800 RPM.

The pump is bi-rotational and is available in a 2 in. and 2-1/2 in. gear size.

Product Common Use: Truck and Trailer Hydraulic Systems, Refuse Collection Vehicles

Specifications

  • Displacement 6 in.³/r
  • Displacement 27 GPM
  • Gear Width 2.500 "
  • Input Mount Type Integral Bracket
  • Material Cast Iron
  • Mount Type Frame Mount
  • Pilot Diameter - "
  • Shaft Size 1.125
  • Shaft Type Round/Keyed
  • Ports (rear/side) Rear
  • Inlet Port Size 1 1/2 NPT
  • Maximum Pressure 2500 PSI
  • Direct or Remote Mount Remote Mount
  • Outlet Port Size 3/4 SAE ORB (-12)
  • Rotation Clockwise or Counterclockwise
  • Gear Size 2.500 "
  • Rear Port Size 3/4 SAE ORB (-12)
  • Suction Port Size 1 1/2 NPT
  • Min Order Qty 1
  • Multiple Sale Qty 1
  • Product Code 620
  • Sell Pack Type Box
  • Shipping Weight 49.750
  • UPC 724920032193

Attributes

Maximum Pressure 2500 PSI
Input Mount Type Integral Bracket
Ports rearside Rear
The Dual Shaft Hydraulic Pump from Buyers Products is excellent for powering continuous duty operations such as refuse collection. The pump is built tough of cast iron. A double shaft design allows for a maximum operating pressure of 2500 PSI while doing continuous duty. It can reach a maximum 1800 RPM.The pump is bi-rotational and is available in a 2 in. and 2-1/2 in. gear size.
