(888) 312-8812 Login SignupNGK SPARK PLUGS U5145 NGK COP (Pencil Type) Ignition Coil
Tap to view 2 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

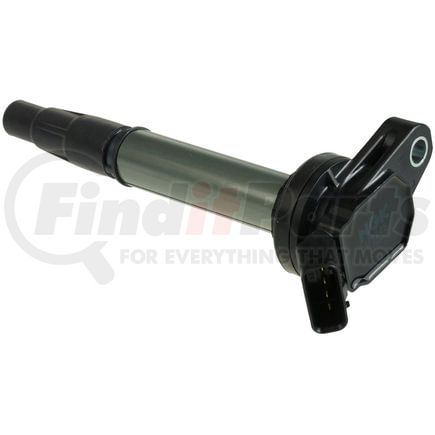

NGK SPARK PLUGS U5145 Part Description
Manufacturer
Product Description
NGK COP (Pencil Type) Ignition Coil
Features & Benefits
- OE QUALITY: Vacuum-sealed premium epoxy resin and thermoplastic coil housings provide superior dielectric strength, voltage insulation and durability
- OPTIMAL PERFORMANCE: Precision coil windings and laminations maximize outputs, custom NGK ASIC chipset optimizes efficiency, prevents component damage
- EASE OF INSTALLATION: NGK Ignition Coils include ignition control module, premium high temperature coil boot, and jumper harnesses where required
- THE NGK DIFFERENCE: Featuring superior materials and design enhancements, NGK's problem solving solutions are backed by a 3 year/36,000 mile warranty
- EXTENSIVE TESTING: NGK ignition coils must pass extreme testing during manufacturing to ensure the highest quality and durability standards are met
- PRODUCT ENGINEERING: Advanced flow and stress modeling systems preemptively identify and avoid common failure points found in OE and competitor coils
NGK SPARK PLUGS U5145 Specifications
Product Attributes
| Connector Quantity | 1 |
| Color | Black |
| Part Number | U5145 |
| Stock Number | 48942 |
| Voltage | 12.0 2H |
| Ignition Type | Distributorless |
| Coil Type | COP (Pencil Type) |
| Oil Filled | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard Replacement |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | No |
| Mount Type | Bolt-On |
| Mounting Hole Quantity | 1 |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 36000 |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Country of Origin (Primary) | CN |
| UPC | 00087295489420 |
| UNSPSC | 26101769 |
NGK SPARK PLUGS U5145 Cross References
| Brand | Part Number |
|---|---|
| Altrom Group | 8415215 |
| Autopart International | 2505-316782 |
| BWD | E1096, E1119 |
| Beck/Arnley | 178-8502 |
| DENSO | 673-1310 |
| DENSO Auto Parts | 673-1310 |
| Delphi | GN10341 |
| Echlin | IC686, IC722 |
| General Motors | 19205156, 19205439 |
| N/A | 9091902252, 0986AG0518, U5145, IGC0174, C1714, C1714VC, 23-0177, 9091902258, 90919-02252, 90919-02258 |
| NGK | 48942 |
| PRENCO | 36-8152 |
| SPECTRA PREMIUM | C-696 |
| STANDARD IGNITION | UF-619 |
| Standard Import | UF619, UF596 |
| Standard Motor Products | UF-596, UF-619 |
| Toyota | 90919-02252, 90919-02258 |
| Walker Products | 921-2126 |
NGK SPARK PLUGS U5145 Fits Vehicles
- Pontiac Vibe (2009-2010)
- Toyota Corolla iM (2017-2018)
- Toyota C-HR (2018-2022)
- Scion iM (2016)
- Toyota Prius Plug-In (2012-2015)
- Toyota Prius V (2012-2017)
- Lexus CT200h (2011-2017)
- Toyota Prius (2010-2015)
- Toyota Corolla (2009-2019)
- Toyota Matrix (2009-2014)
- Scion xD (2008-2014)
