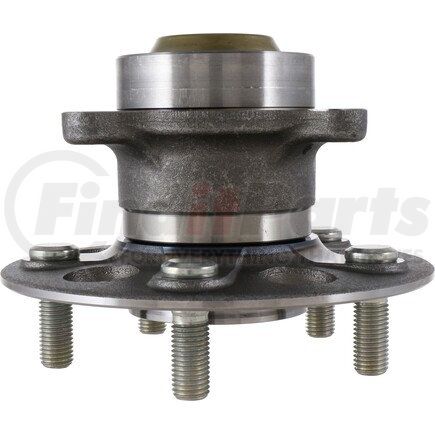

(888) 312-8812 Login SignupOE form, fit & function wheel hub unit.
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 64 MM |
| Brake Pilot Diameter | 64 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Rectangular |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Drive Type | Non-driven |
| Flange Offset | 58.5 MM |
| Bolt Circle Diameter | 114.3 MM |
| Knuckle Bolt Circle Diameter (Inches) | 3.937 |
| Knuckle Bolt Circle Diameter (Millimeters) | 100 |
| Knuckle Bolt Hole Size | M10X1.25 |
| Wheel Stud Size | M12X1.5 MM |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810618891 |
| Brand | Part Number |
|---|---|
| Autopart International | 1411556366 |
| Centric Parts | 40640033 |
| Honda | 42200TT1A01 |
| Schaeffler | 103194 |
| Timken | HA590527 |
