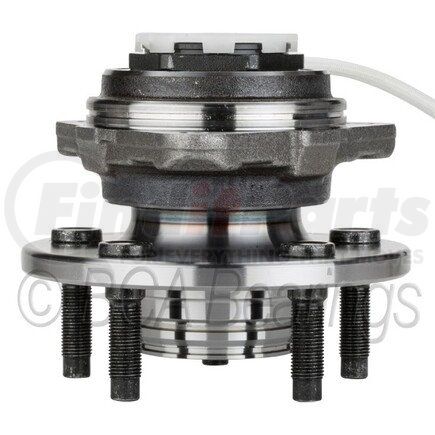

(888) 312-8812 Login SignupNTN WE61559 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 9 more
$44199
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61559 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61559 Specifications
Product Attributes
| Spline Quantity | 42 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 2.776 IN |
| Brake Pilot Diameter | 2.831 IN |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Triangle |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone Ring |
| Drive Type | Driven |
| Flange Offset | 2.208 IN |
| Bolt Circle Diameter | 4.500 IN |
| Knuckle Bolt Circle Diameter (Inches) | 4.748 |
| Knuckle Bolt Circle Diameter (Millimeters) | 120.6 |
| Knuckle Bolt Hole Size | M12X1.75 |
| Wheel Stud Size | 1/2-20UNF IN |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810615593 |
NTN WE61559 Cross References
| Brand | Part Number |
|---|---|
| Alltech Automotive | 515027 |
| Autopart International | 141144858 |
| CENTRIC | 402.65026, 402.65026E |
| CRS Automotive | NT515027 |
| Centric Parts | 402.65026, 402.65026E |
| DT Components | 515027 |
| Drive Tech America | NT515027 |
| DuraGo | 29515027 |
| Fenco | WH515027 |
| Ford | F87A1104AC, XL541104AA, F87A1104AB, F87Z1104AB, XL5Z1104A, G2MZ1104AA |
| GMB | 7250092 |
| GSP | 116027 |
| MOOG Chassis Products | 515027 |
| MPA | WH515027 |
| Mazda | ZZP033061, ZZP033061A |
| Mevotech | H515027 |
| Parts Master | PM515027 |
| Parts Plus | P515027 |
| Power Train | PT515027 |
| Raybestos Brakes | 715027 |
| SKF | BR930342 |
| Schaeffler | FW727, 101989 |
| Timken | 515027 |
| WJB | WA515027 |
NTN WE61559 Fits Vehicles
- Ford Explorer Sport (2001-2002)
- Ford Explorer Sport Trac (2001-2002)
- Mazda B4000 (1998-2000)
- Ford Ranger (1998-2000)
- Ford Explorer (1998-2000)
