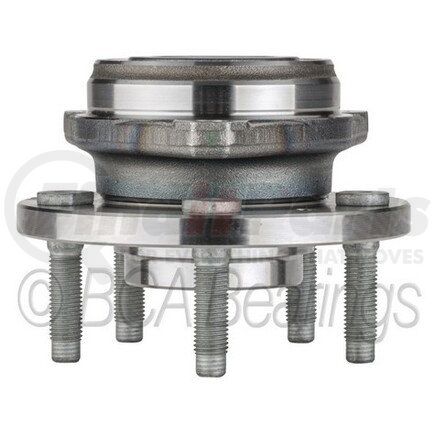

(888) 312-8812 Login SignupNTN WE61521 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 8 more
$21349
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61521 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61521 Specifications
Product Attributes
| Spline Quantity | 26 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 63.2 MM |
| Brake Pilot Diameter | 70.9 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Triangle |
| Anti Lock Braking System | No |
| Drive Type | Driven |
| Flange Offset | 41.3 MM |
| Flange Diameter | 5.472 IN |
| Bolt Circle Diameter | 108.0 MM |
| Bearing Generation | 3 |
| Knuckle Bolt Circle Diameter (Inches) | 4.512 |
| Knuckle Bolt Circle Diameter (Millimeters) | 114.6 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8482105016 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810615210 |
NTN WE61521 Cross References
| Brand | Part Number |
|---|---|
| Alltech Automotive | 513156 |
| Autopart International | 141145597 |
| CENTRIC | 400.61003, 400.61003E |
| CRS Automotive | NT513156 |
| Centric Parts | 400.61003, 400.61003E |
| DT Components | 513156 |
| Drive Tech America | NT513156 |
| DuraGo | 29513156 |
| Fenco | WH513156 |
| Ford | 1F222C300AA, 1F222C300BA, 1F2Z1104AA, 1F2Z1104AB, XF222C300AB, YF221104AA, XF222C300AA, XF2Z1104AA |
| GMB | 7250025 |
| GSP | 114156 |
| MOOG Chassis Products | 513156 |
| MPA | WH513156 |
| Mevotech | H513156 |
| Motorcraft | HUB78 |
| Parts Master | PM513156 |
| Parts Plus | P513156 |
| Power Train | PT513156 |
| Precision Bearing | 513156 |
| Raybestos Brakes | 713156 |
| SKF | BR930246 |
| Schaeffler | FW9156, 559360D |
| Timken | 513156 |
| WJB | WA513156 |
NTN WE61521 Fits Vehicles
- Ford Windstar (1999-2003)
