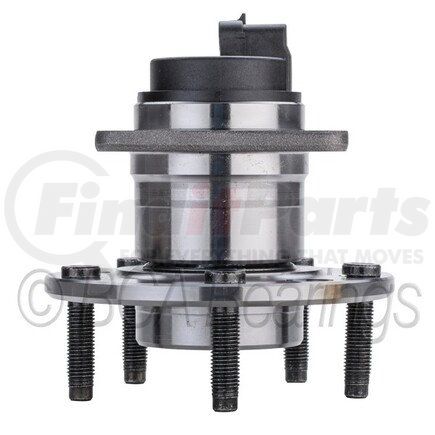

(888) 312-8812 Login SignupNTN WE61389 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 9 more
$47199
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61389 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61389 Specifications
Product Attributes
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 2.760 IN |
| Brake Pilot Diameter | 2.780 IN |
| Wheel Stud Quantity | 5 |
| Flange Shape | Rectangular |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone Ring |
| Drive Type | Non-driven |
| Flange Offset | 2.705 IN |
| Bolt Circle Diameter | 4.764 IN |
| Knuckle Bolt Circle Diameter (Inches) | 3.961 |
| Knuckle Bolt Circle Diameter (Millimeters) | 100.6 |
| Knuckle Bolt Hole Size | 11.9 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8482105016 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810613896 |
NTN WE61389 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | FW109, 513085 |
| CENTRIC | 407.62022, 407.62022E |
| Centric Parts | 407.62022E, 407.62022 |
| DT Components | 513085 |
| Drive Tech America | NT513085 |
| GMB | 7300360 |
| General Motors | 7466965, 7470507, 12413001, 7470508 |
| MOOG Chassis Products | 513085 |
| Mevotech | H513085 |
| Power Train | PT513085 |
| Raybestos Brakes | 713085 |
| SKF | BR930065 |
| Schaeffler | FW985, 102236 |
| Timken | 513085 |
NTN WE61389 Fits Vehicles
- Chevrolet Corvette (1991-1996)
- Excalibur Limited (1993)
