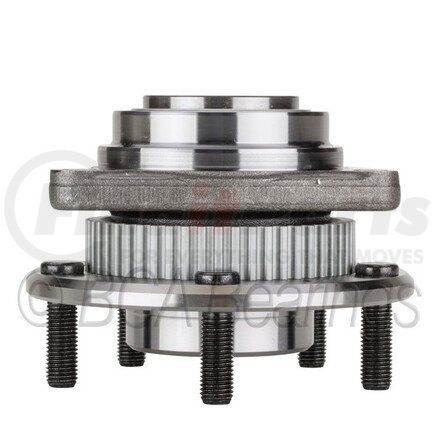

NTN part description

Product Description

OE form, fit & function wheel hub unit.

Features & Benefits

  • All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
  • Forged-steel construction provides the toughness and durability required for even the harshest applications.
  • Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
  • Application-specific components to ensure proper connection and performance of the ABS module and sensors.
  • Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
  • Application-specific engineering reduces noise, vibration and harshness (NVH).

Product Attributes

Spline Quantity 27
Flange Bolt Hole Quantity 3
Wheel Pilot Diameter 2.760 IN
Brake Pilot Diameter 2.780 IN
Wheel Stud Quantity 5
Flange Shape Modified Triangle
Anti Lock Braking System Yes
Anti Lock Braking System Type Tone Ring
Drive Type Driven
Flange Offset 1.850 IN
9555 4.750 IN
Knuckle Bolt Circle Diameter (Inches) 4.750
Knuckle Bolt Circle Diameter (Millimeters) 120.7
Knuckle Bolt Hole Size M12X1.75
Wheel Stud Size M12X1.5 MM

Additional Information

Country of Origin (Primary) KR
Harmonized Tariff Code (Schedule B) 8708995800
Warranty Time 12
Warranty Time UOM MO
UPC 662810608335

Part Interchanges

Fits Vehicles

  • Oldsmobile Bravada (1991-1994, 1996)
  • GMC Typhoon (1992-1993)
  • GMC Sonoma (1994-1997)
  • GMC Jimmy (1992-1997)
  • Chevrolet S10 (1994-1997)
  • Chevrolet Blazer (1995-1997)
  • Chevrolet S10 Blazer (1991-1994)
