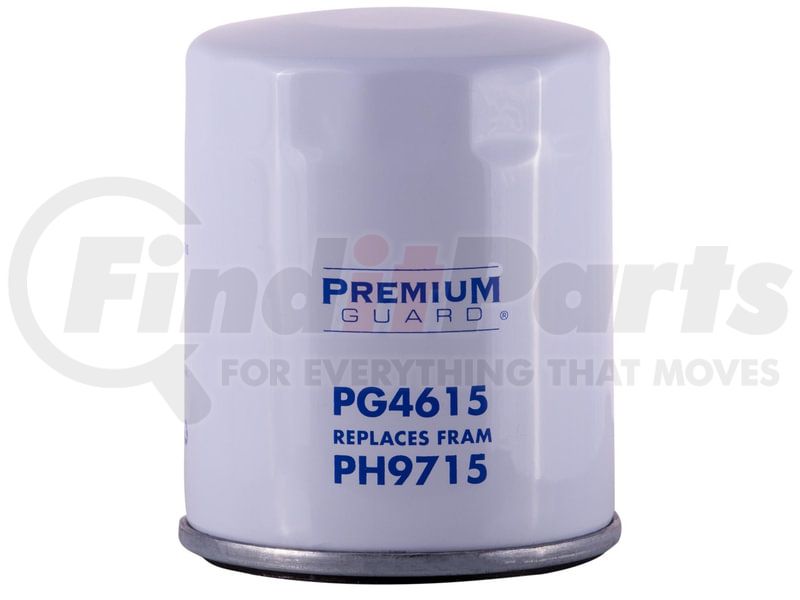

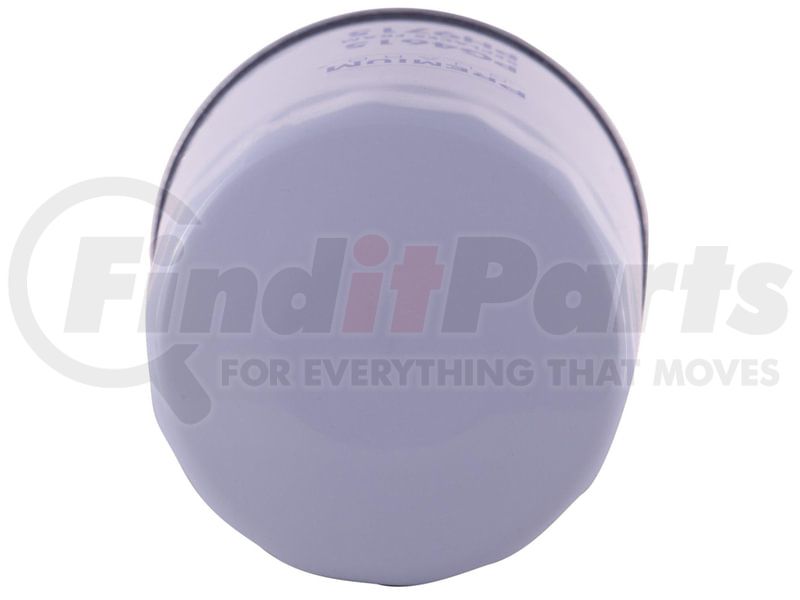

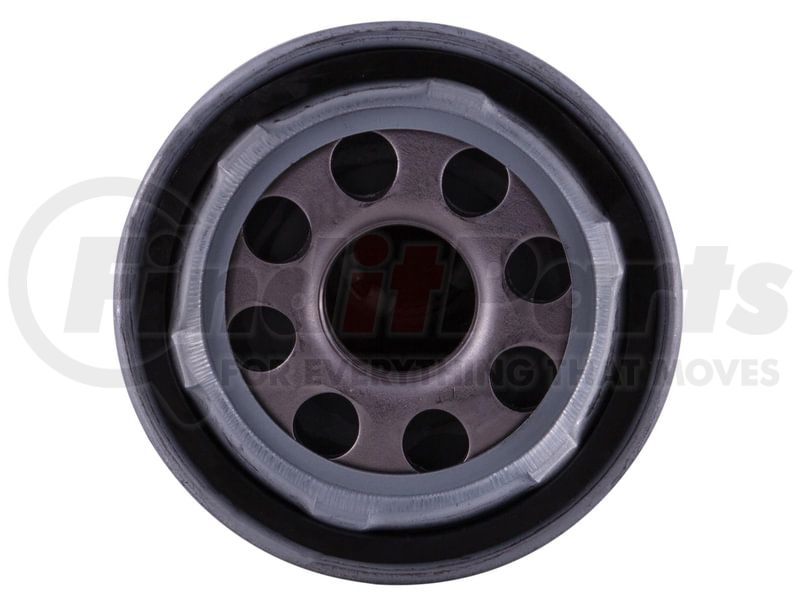

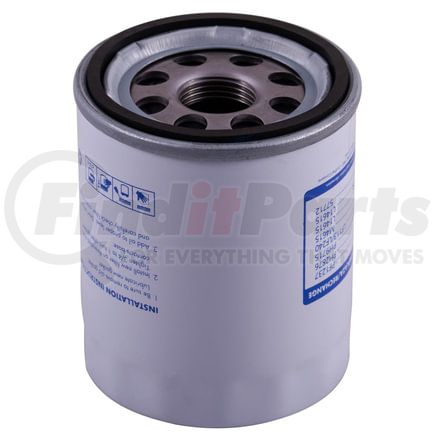

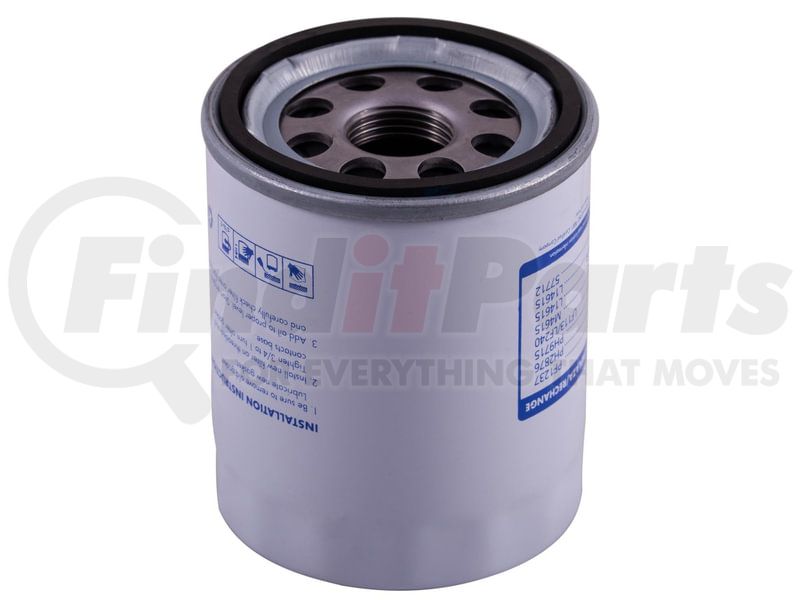

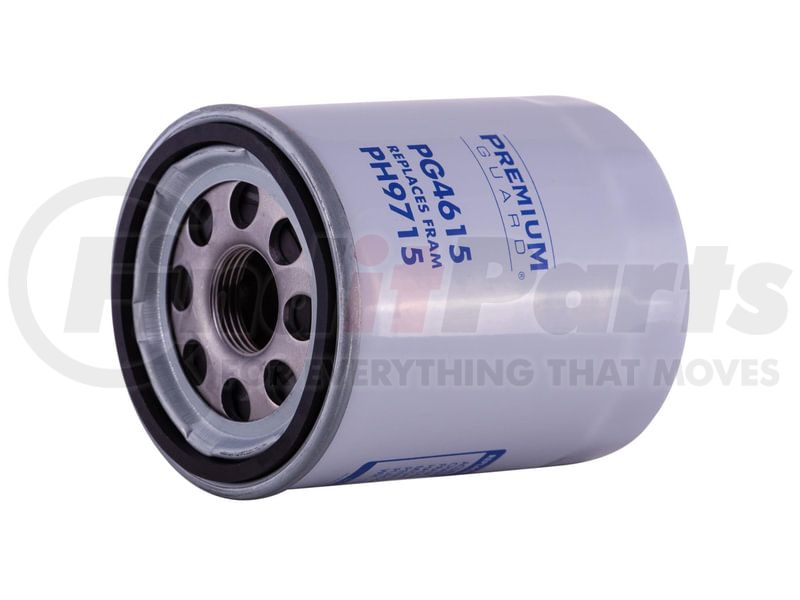

PREMIUM GUARD PG4615 Part Description
Manufacturer
Features & Benefits
- Removable canister keeps the filter element enclosed during removal
- Sealed outer shell contains the media and circulating oil together
- Removes used filtration media together with the spin-on shell
- Connects directly to the engine adapter through its threaded base
Premium Guard Engine Oil Filter
For Subaru applications using an M20 x 1.5 spin-on filter, the Premium Guard Engine Oil Filter combines the filter media, gasket, and steel shell in one removable unit. Its bypass valve is set at 23.2 psi, giving this version a higher opening point than many lower-pressure filters in the same category. Its 290 psi burst rating adds a pressure-rated shell to the canister. Thread size, bypass setting, and shell rating give the Premium Guard PG4615 its specification for Subaru engines that use this filter.
pg4615
PREMIUM GUARD PG4615 Specifications
Product Attributes
| Filter Type | Spin-on |
| Filter Media Material | Enhanced Cellulose |
| Micron Rating | 15~25 |
| Flow Rate | 15L/min |
| Anti-Drain Back Valve | yes |
| Bypass Relief Valve | yes |
| Height | 3.40 IN |
| Gasket Inside Diameter | 2.24 IN |
| Gasket Outside Diameter | 2.48 IN |
| Gasket Thickness | 0.12 IN |
| Gasket Type | NBR |
| Height | 3.4 IN |
| Gasket Inside Diameter | 2.24000000000000 IN |
| Gasket Outside Diameter | 2.48±0.02 IN |
| Gasket Thickness | 0.12 IN |
| Outer Diameter Bottom | 2.67 IN |
| Inside Thread Size | M20x1.5-6H |
| Gasket Outside Diameter | 57±0.5 MM |
| Burst Pressure | 290 PS |
| Bypass Relief Valve Setting | 23.2 PS |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
PREMIUM GUARD PG4615 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF1237 |
| Amsoil | EAO13 |
| Autoedge | AL7317 |
| Autopart International | 5001-335255 |
| Baldwin | B530 |
| Beck/Arnley | 041-0859 |
| Big A | 92356 |
| CARQUEST | 84055 |
| Canadian Tire | 17-1747-0 |
| Carquest Extended Performance | P84712 |
| Carquest Premium Filters | 84055 |
| Carquest Standard | R84055 |
| Cartek | CTK4615 |
| Cenex | CO2867 |
| Champ | PH2876 |
| Champ filters | PH2867 |
| Champion Filters | COS9715 |
| DENSO Auto Parts | 150-1009 |
| Duralast | D4615 |
| ECOGARD | X4615 |
| ECOGUARD | X4615 |
| EXXON/MOBIL OIL | M1108, M1108A |
| FRAM | PH6607, M1-108A, PH5343, DL5343, PH7313 |
| FVP | R7712 |
| Federated | PG4615F |
| Firestone | TF-4620 |
| Flag Filters | C-3562 |
| GK Industries | OF4615 |
| GMB | 699-0017 |
| Group 7 | V4620BP |
| Hastings | LF113 |
| Hyundai | 2630002752 |
| IAPCO | OF6 |
| Kralinator | L365 |
| LUBER-FINER | PH2867 |
| MANN-HUMMEL FILTERS | L14615, W 6019 |
| MOBIL OIL | M1108A, M1108 |
| Magneti Marelli | 1AML00025A |
| MicroGard | MGL57055 |
| MicroGard Select | MSL57055 |
| Mighty | M4615 |
| Mileguard | MO7317 |
| Motor Trend | ML7317 |
| NAPA | 7712 |
| NAPA Gold Filters | 7055 |
| NAPA ProSelect Filters | 27712 |
| Napa Proformer | 27055 |
| Nissan | 15208AA10 |
| PUREPRO | L4612 |
| PUROLATOR | TL14615, TL14615BP, PBL14615, PL14615 |
| Parts Master | 67712 |
| Parts Plus | PH4615 |
| Pennzoil | PZ-182 |
| Performax | PO-182 |
| Prime Guard | POF4615 |
| Pro-Tec | 712 |
| Promotive | SL14612 |
| Pronto | PO4615 |
| Purezone | 8-57055 |
| Purolator | L14615 |
| STP Filters | S4615 |
| STP Mexico | S4615XL |
| SURE FILTER | SFOA160 |
| Saab | 32009814 |
| Service Champ | OF4622 |
| Service Pro | M4615 |
| Subaru | 15208AA080 |
| Tradecraft | TC4615 |
| Unocal 76 | PF1356 |
| Valucraft | V6607 |
| Valvoline | VO-106 |
| WIX FILTERS | 57055XP, 57055 |
| Wix | 57712 |
PREMIUM GUARD PG4615 Fits Vehicles
- Subaru Ascent (2019-2026)
- Subaru Crosstrek (2016-2026)
- Subaru XV (2013-2016, 2018-2022)
- Subaru WRX STI (2013-2021)
- Subaru WRX (2012-2016)
- Subaru XV Crosstrek (2013-2015)
- Saab 9-2X (2005-2006)
- Subaru Outback (2001-2026)
- Subaru Legacy (2001-2025)
- Subaru Justy (1988-1994)
- Subaru Impreza (2001-2026)
- Subaru Forester (2001-2026)
- Subaru Baja (2003-2006)
