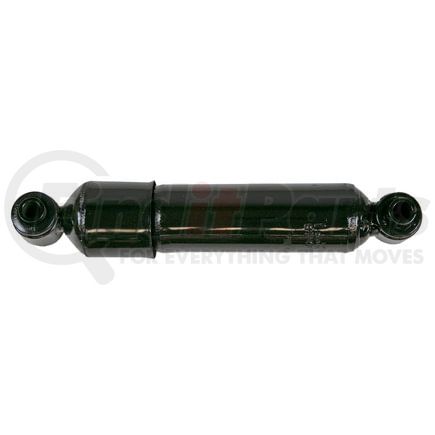

MONROE 66209 Part Description
Manufacturer
Features & Benefits
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient and consistent control (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
MONROE 66209 Specifications
Product Attributes
| Compressed Length | 8.45 IN |
| Compressed Length | 214.6 MM |
| Extended Length | 10.49 in |
| Extended Length | 266.4 MM |
| Travel Length | 2.05 in |
| Travel Length | 52.1 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2 3/4" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS97 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1 7/8" Sleeve OAL |
| Upper Mount Code | LS96 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Diameter | 51.3 MM |
| Body Diameter | 2.02 IN |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708801910 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598000668 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 66209 Cross References
| Brand | Part Number |
|---|---|
| Freightliner | 1860766000 |
| Gabriel | 83040 |
| Gold Shock Absorber | 5001263 |
| Meritor | M83040 |
| NAPA Shocks | 66209 |
| OEM | 1860766000 |
| PRT HD | 925016 |
| Sachs | 315656 |
MONROE 66209 Fits Vehicles
- Freightliner M2 106 (2002-2024)
- Freightliner 122SD (2014-2023)
- Freightliner 114SD (2012-2023)
- Freightliner 108SD (2012-2023)
