(888) 312-8812 Login SignupRAYBESTOS 980817R Raybestos R-Line Brake Rotor
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980817R Part Description
Manufacturer
Product Description

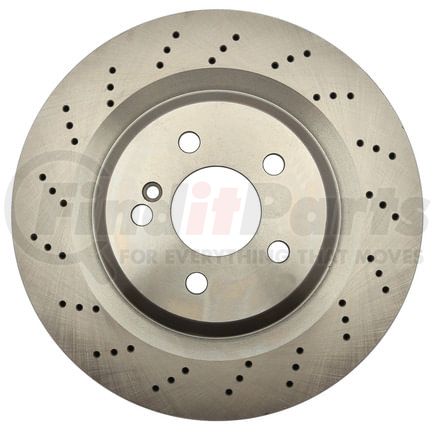

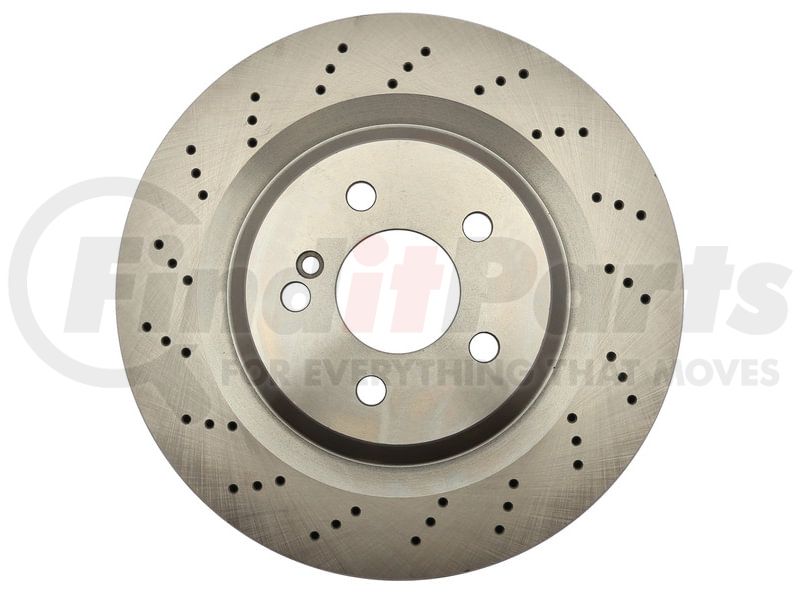

Raybestos R-Line Brake Rotor
Application Summary
2006-2003 Mercedes-Benz E55 AMG Rear, 2009-2007 Mercedes-Benz E63 AMG Rear, 2012-2009 Mercedes-Benz SL63 AMG Rear, 2006 Mercedes-Benz CLS55 AMG Rear, 2010-2004 Mercedes-Benz SL600 Rear, 2011-2007 Mercedes-Benz CLS63 AMG Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980817R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.535 IN |
| Inside Diameter | 216.8 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26 MM |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330 MM |
| Overall Height | 2.291 IN |
| Overall Height | 58.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372915 |
RAYBESTOS 980817R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH200491, YH200491C, YH200491P |
| AutoZone | 76618, 76618DG |
| BrakeBest | 980817, 980817RGS |
| CENTRIC | 228.35077 |
| Centric Parts | 121.35077, 128.35077, 228.35077 |
| Dura Corp | BR34443 |
| Dynamic Friction Company | 624-63062 |
| Mercedes-Benz | 2114231012, 2304231612 |
| Promax | 14-34443 |
| UAP | R35076, R35077 |
| Winhere | 6621385DR |
RAYBESTOS 980817R Fits Vehicles
- Mercedes-Benz SL63 AMG (2009-2012)
- Mercedes-Benz E63 AMG (2007-2009)
- Mercedes-Benz CLS63 AMG (2007-2011)
- Mercedes-Benz CLS55 AMG (2006)
- Mercedes-Benz SL65 AMG (2005-2011)
- Mercedes-Benz SL600 (2004-2010)
- Mercedes-Benz E55 AMG (2003-2006)
