(888) 312-8812 Login SignupGABRIEL 49128 Air Adjustable Shock Absorbers
Tap to view 6 more
$16599
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
GABRIEL 49128 Part Description
Manufacturer
Product Description
Air Adjustable Shock Absorbers
Features & Benefits
- America's best-known air-adjustable shock absorbers
- Fully-adjustable air shocks help you maintain proper ride height
- Can help improve handling and reduce risk of bottoming out Up to 1,100 pounds of leveling capacity per pair (not to exceed GVWR)
- Custom-sized for a direct and simple installation and fit
- Easy to inflate at any service station, at home with an air compressor or with continued use of an existing onboard air management system
- Air pressure of 25 min – 200 max psi
- Sold in pairs and includes Gabriel Air Hose Kit when applicable – Air Hose Kit can also be purchased separately
- Chrome-plated piston rod construction and deluxe wiper seals provide optimum sealing
- Ideal for temporarily towing boats and trailers or heavy loads
GABRIEL 49128 Specifications
Product Attributes
| Compression (lb) | n/a |
| Lower Mount Code | EB1 |
| Accessory Kit # | 140644,141099 |
| Extended Length (in) | 22.77 |
| Rebound (lb) | n/a |
| Core Color | Y |
| Dust Tube Material | Steel |
| Boot Included | No |
| Features/Benefits 1 | America’s best-known air-adjustable shock absorber |
| Recoil Cutoff | n/a |
| Collapsed Length (in) | 14.04 |
| Features/Benefits 4 | Up to 1,100 lbs per pair of leveling capacity not to exceed vehicle Gross vehicle Weight Rating, product does not increase payload |
| Weight (lbs) | 11.90 |
| Features/Benefits 3 | Can help improve handling and can reduce the risk of bottoming out |
| Mounting Codes 2024.pdf | https://gabriel.com/sites/default/files/Mounting_Codes_2025.pdf |
| Dust Tube | n/a |
| Upper Mount Code | BP14 |
| Stroke (in) | 8.73 |
| Features/Benefits 2 | Ideal for temporarily towing boats and trailers or heavy loads |
| Bore | n/a |

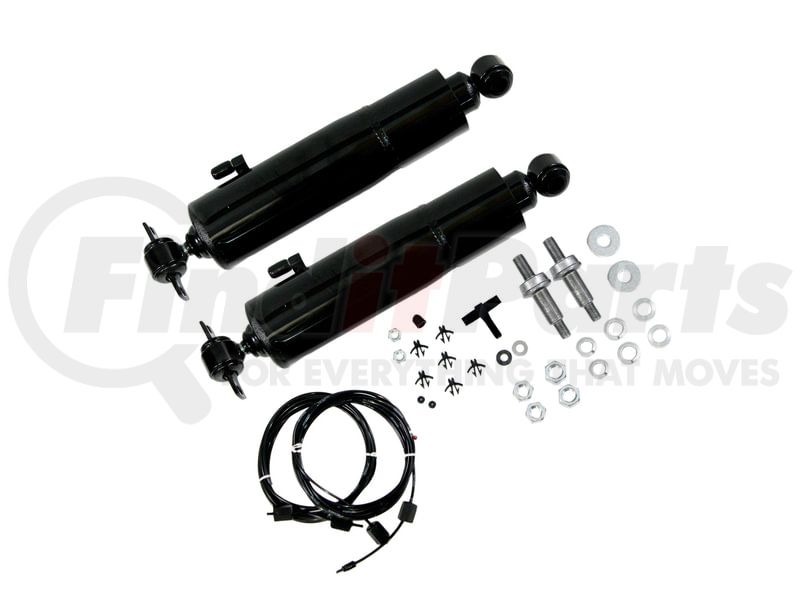

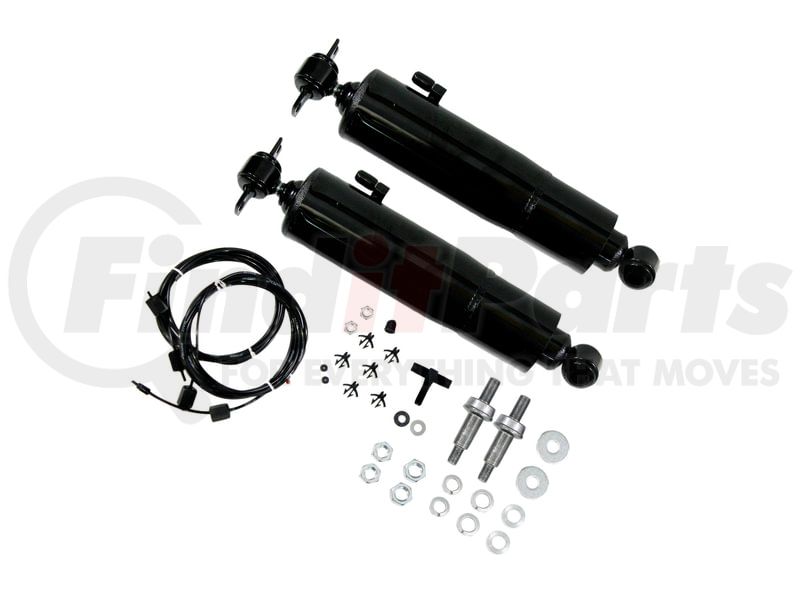

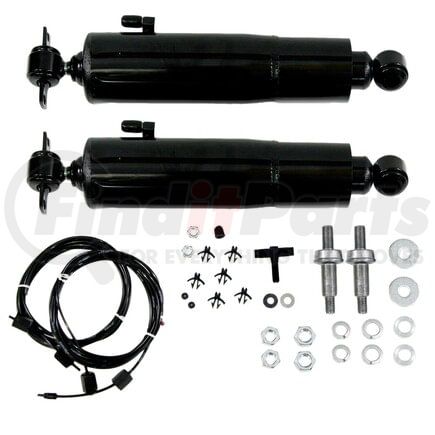

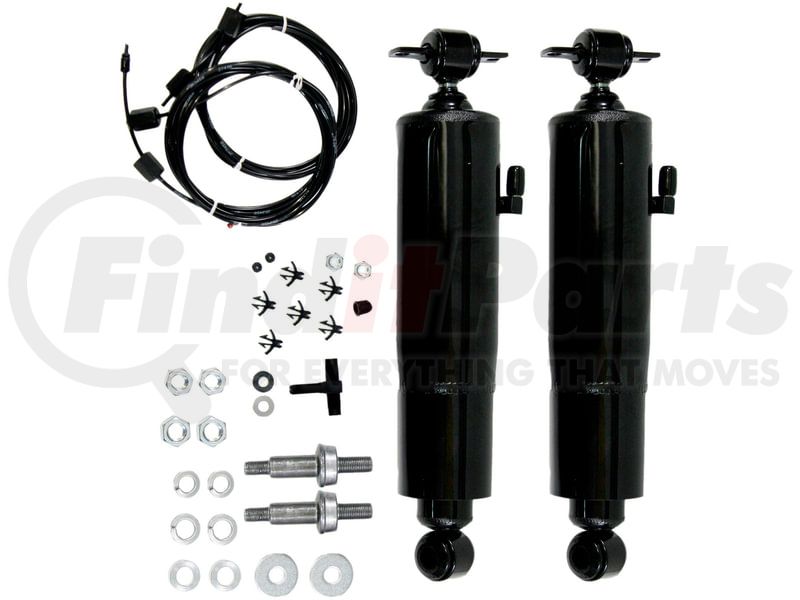

| Package Contents | 2 Shocks, 2 Nuts, 2 Clamps, 2 O-ring Packing, 1 Cap, 1 Valve Core, 6 Clips, 1 Washers, 1 Seal, 2 Tube assy, 4 Nuts, 6 Washers, 2 Spacers, 2 Bolts |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| MSDS Sheet Number | ARP002 / RC001 |
| Country of Origin (Primary) | MX |
| UPC | 00043645503222 |
| VMRS Code | 016006001 |
| UNSPSC | 25172011 |
GABRIEL 49128 Cross References
GABRIEL 49128 Fits Vehicles
- Buick Wildcat (1965-1970)
- Buick LeSabre (1965-1970)
- Buick Electra (1965-1970)
- Cadillac Fleetwood (1971-1976)
- Cadillac DeVille (1971-1976)
- Cadillac Calais (1971-1976)
- Pontiac Executive (1967-1970)
- Pontiac Star Chief (1963-1966)
- Pontiac Grand Prix (1963-1968)
- Pontiac Catalina (1963-1970)
- Pontiac Bonneville (1963-1970)
- Oldsmobile Starfire (1965-1966)
- Oldsmobile Jetstar 88 (1965-1966)
- Oldsmobile Delmont 88 (1967-1968)
- Oldsmobile Dynamic 88 (1965-1966)
- Oldsmobile Delta 88 (1965-1970)
- Oldsmobile Cutlass (1967)
- Oldsmobile 98 (1965-1970)
- Buick Estate Wagon (1970)
