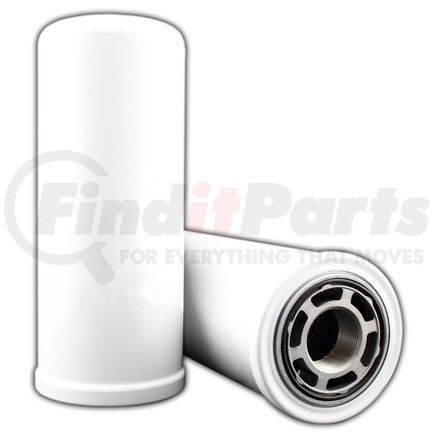

(888) 312-8812 Login SignupMAIN FILTER MF0863253 Aftermarket Replacement Spin-On Fuel Filter with 15 Micron Rating, Glass, Outside-In Flow
MSRP: $124.79
$10449
Save $20.30
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 17
MAIN FILTER MF0863253 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM MANN+HUMMEL p/n WH12575
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0863253 replaces OEM WH12575 by MANN+HUMMEL and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 4.685 |
| Outside Diameter Bottom | 4.606 |
| Thread Size | 1.75 |
| Threads | 12 UN2B |
| ADBV | NO |
| Burst Pressure | 783 |
| Collapse Pressure | 217.6 |
| Flow Rate GPM | 79 GPM |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 58.5625 |
| Filter Area sq in | 625 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/15 |
| Beta Ratio 2 | 1000/18 |
| Micron 1 | 15 |
Features & Benefits
- Interchange/replacement for OEM MANN+HUMMEL p/n WH12575
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0863253 replaces OEM WH12575 by MANN+HUMMEL and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Built using Quality Components with strict quality control.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
MAIN FILTER MF0863253 Specifications
Product Attributes
| Micron Rating | 15 |
| Fluid Type | HH / HL / HM / HV |
| Collapse Pressure | 217.6 |
| ADBV | No |
| Gasket Material | Buna |
| Flow Rater | 79 GPM |
| Dust Holding Capacity | 58.56 grams |
| Thread Size | 1.75 |
| Thread Type | UN2B |
| Outside Diameter (Top) | 4.69 in. |
| Wrap | No |
| Product Media | Glass |
| Bypass | No |
| Beta Ratio 2 | 1000/18 |
| Burst Pressure | 783 |
| Beta Ratio 1 | 200/15 |
| Filter Area (sq. in.) | 625 |
| Flow Direction | Outside-In |
| Height (in.) | 11.66 |
| Handle | No |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
MAIN FILTER MF0863253 Cross References
| Brand | Part Number |
|---|---|
| MANN+HUMMEL | WH12575 |
