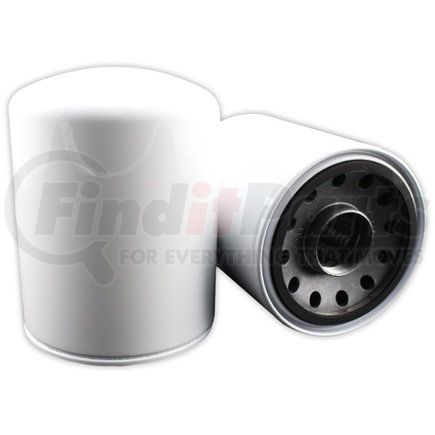

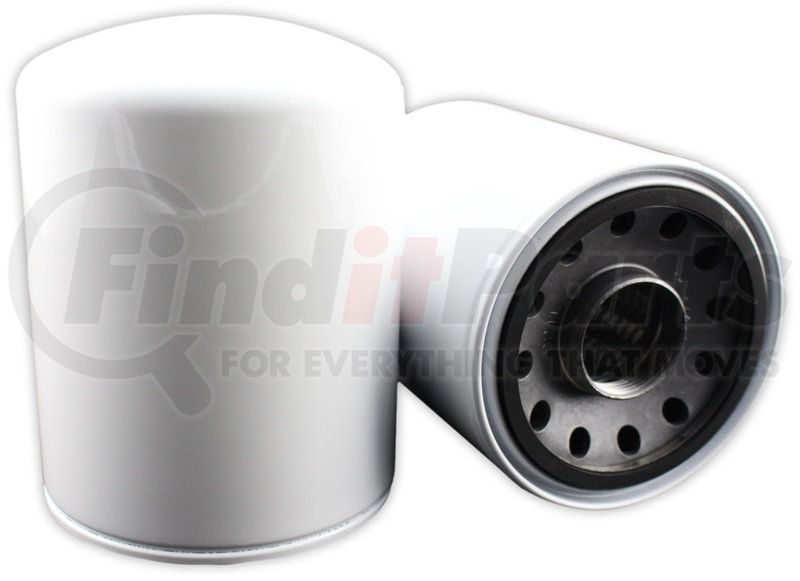

Main Filter MF0223231 - Aftermarket Replacement Spin-On Fuel Filter with 10 Micron Rating, Cellulose, Outside-In Flow
- Part Number
- MF0223231
- Manufacturer
- MAIN FILTER
- Description
-
Aftermarket Replacement Spin-On Fuel Filter with 10 Micron Rating, Cellulose, Outside-In Flow
details
$5799
MSRP: $69.28
Save: $11.29
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAIN FILTER part description
Technical Specifications
| Outside Diameter Top | 5.079 |
| Outside Diameter Bottom | 5.079 |
| Thread Size | 1.25 |
| Threads | 11 BSP |
| BPVS Setting PSI | 25.4 |
| ADBV | NO |
| Burst Pressure | 246.6 |
| Collapse Pressure | 72.5 |
| Flow Rate GPM | 79 GPM |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 41.7384 |
| Filter Area sq in | 1044 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM DONALDSON/FBO/DCI p/n P171640
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0223231 replaces OEM P171640 by DONALDSON/FBO/DCI and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Main Filter MF0223231 replaces OEM P171640 by DONALDSON/FBO/DCI and is compatible in fit, form and function.
- Images may be a general representations of products
- All of our elements are manufactured following ISO specifications.
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Features & Benefits
- Interchange/replacement for OEM DONALDSON/FBO/DCI p/n P171640
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0223231 replaces OEM P171640 by DONALDSON/FBO/DCI and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Product Attributes
| Micron Rating | 10 |
| Product Media | Cellulose |
| Height (in.) | 8.95 |
| Bypass | Yes |
| Wrap | No |
| Handle | No |
| Thread Type | BSP |
| BPVS Setting (PSI) | 25.4 |
| ADBV | Yes |
| Outside Diameter (Top) | 5.08 in. |
| Thread Size | 1.25 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Burst Pressure | 246.6 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Collapse Pressure | 72.5 |
| Flow Rater | 79 GPM |
| Beta Ratio 1 | 2/10 |
| Dust Holding Capacity | 41.74 grams |
| Filter Area (sq. in.) | 1044 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
