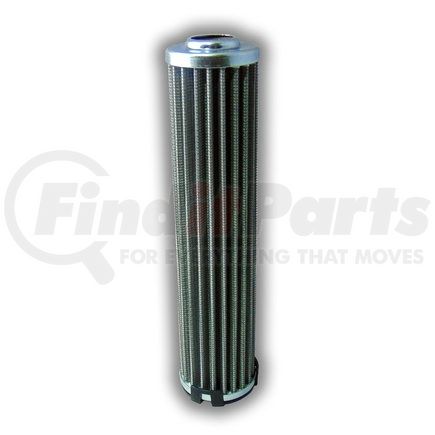

(888) 312-8812 Login SignupMAIN FILTER MF0600564 Aftermarket Replacement Hydraulic Filter with 40 Micron Rating, Wire Mesh, Outside-In Flow
MSRP: $54.07
$4849
Save $5.58
Limited availability at this price!
In Stock
Get it by Friday, Jan 9
MAIN FILTER MF0600564 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM WIX p/n R94C40TV
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0600564 replaces OEM R94C40TV by WIX and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 1.791 |
| Inide Diameter Top | 0.807 |
| Outside Diameter Bottom | 1.791 |
| BPVS Setting PSI | 22 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Filter Area sq in | 86 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Micron 1 | 40 |
Features & Benefits
- Interchange/replacement for OEM WIX p/n R94C40TV
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Images may be general representations of products and may vary from image
- Main Filter MF0600564 replaces OEM R94C40TV by WIX and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Images may be a general representations of products
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
MAIN FILTER MF0600564 Specifications
Product Attributes
| Height (in.) | 7.83 |
| Bypass | Yes |
| Handle | Yes |
| Wrap | Yes |
| Product Media | Wire Mesh |
| Micron Rating | 40 |
| Outside Diameter (Top) | 1.79 in. |
| Inside Diameter (Top) | 0.81 in. |
| Collapse Pressure | 145 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Outside Diameter (Bottom) | 1.79 in. |
| BPVS Setting (PSI) | 21.8 |
| Gasket Material | Viton |
| Flow Direction | Outside-In |
| Fluid Type | HH / HL / HM / HV |
| Filter Area (sq. in.) | 86 |
MAIN FILTER MF0600564 Part Interchanges
| Brand | Part Number |
|---|---|
| Wix | R94C40TV |
MAIN FILTER MF0600564 Cross References
We have 1 alternatives for the MF0600564 by MAIN FILTER:
