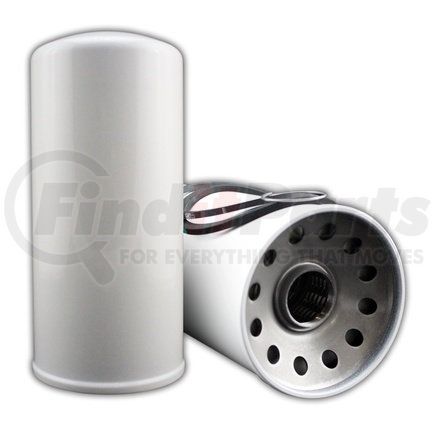

(888) 312-8812 Login SignupMAIN FILTER MF0466146 Aftermarket Replacement Spin-On Fuel Filter with 10 Micron Rating, Cellulose, Outside-In Flow
MSRP: $56.71
$4749
Save $9.22
Limited availability at this price!
In Stock
Get it by Monday, Jun 15
MAIN FILTER MF0466146 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM FLUID POWER EXPRESS p/n 3800003F1
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0466146 replaces OEM 3800003F1 by FLUID POWER EXPRESS and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 5.06 |
| Outside Diameter Bottom | 5.06 |
| Thread Size | 1.5 |
| Threads | 16 UNF |
| ADBV | NO |
| Burst Pressure | 261 |
| Collapse Pressure | 72.5 |
| Flow Rate GPM | 40 GPM |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM FLUID POWER EXPRESS p/n 3800003F1
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0466146 replaces OEM 3800003F1 by FLUID POWER EXPRESS and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Compatible with OEM filter in fit, form and function
- Images may be a general representations of products
MAIN FILTER MF0466146 Specifications
Product Attributes
| ADBV | No |
| Beta Ratio 1 | 2/10 |
| Burst Pressure | 261 |
| Bypass | No |
| Gasket Material | Buna |
| Handle | No |
| Collapse Pressure | 72.5 |
| Height (in.) | 10.94 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Flow Direction | Outside-In |
| Thread Size | 1.5 |
| Thread Type | UNF |
| Filter Area (sq. in.) | 671 |
| Wrap | No |
| Fluid Type | HH / HL / HM / HV |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Outside Diameter (Top) | 5.06 in. |
| Micron Rating | 10 |
| Flow Rater | 40 GPM |
| Product Media | Cellulose |
MAIN FILTER MF0466146 Cross References
| Brand | Part Number |
|---|---|
| FLUID POWER EXPRESS | 3800003F1 |
