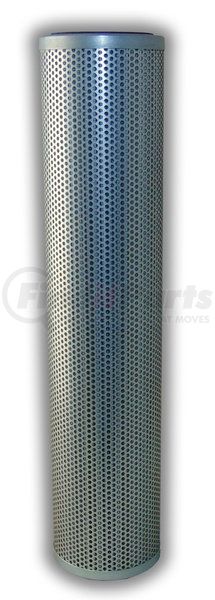

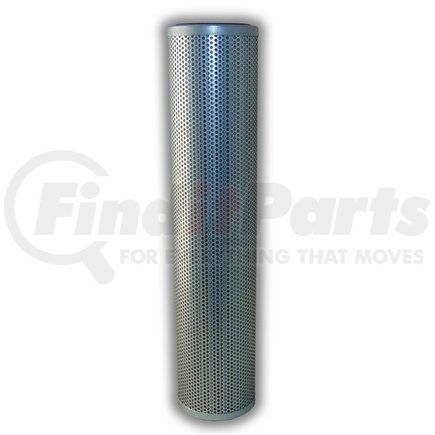

Main Filter MF0868036 - Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Inside-Out Flow
- Part Number
- MF0868036
- Manufacturer
- MAIN FILTER
- Description
-
Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Inside-Out Flow
details
$8599
MSRP: $96.25
Save: $10.26
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAIN FILTER part description
Technical Specifications
| Outside Diameter Top | 3.94 |
| Inide Diameter Top | 2.53 |
| Outside Diameter Bottom | 3.94 |
| Inside Diameter Bottom | 2.34 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 78.0362 |
| Filter Area sq in | 869 |
| Flow Direction | Inside-Out |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/20.7 |
| Beta Ratio 2 | 1000/26.6 |
| Micron 1 | 25 |
Features & Benefits
- Interchange/replacement for OEM LUBER-FINER p/n LH8520
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Images may be general representations of products and may vary from image
- Main Filter MF0868036 replaces OEM LH8520 by LUBER-FINER and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Features & Benefits
- Interchange/replacement for OEM LUBER-FINER p/n LH8520
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0868036 replaces OEM LH8520 by LUBER-FINER and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Product Attributes
| Handle | No |
| Product Media | Glass |
| Bypass | No |
| Wrap | Yes |
| Micron Rating | 20 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Outside Diameter (Bottom) | 3.94 in. |
| Filter Area (sq. in.) | 869 |
| Gasket Material | Buna |
| Inside Diameter (Top) | 2.53 in. |
| Dust Holding Capacity | 78.04 grams |
| Collapse Pressure | 145 |
| Inside Diameter (Bottom) | 2.34 in. |
| Outside Diameter (Top) | 3.94 in. |
| Flow Direction | Inside-Out |
| Height (in.) | 18.27 |
| Beta Ratio 1 | 200/20.7 |
| Fluid Type | HH / HL / HM / HV |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Beta Ratio 2 | 1000/26.6 |
Part Interchanges
MAIN FILTER MF0868036 Cross Reference
We have 1 alternatives for the MF0868036 by MAIN FILTER:
