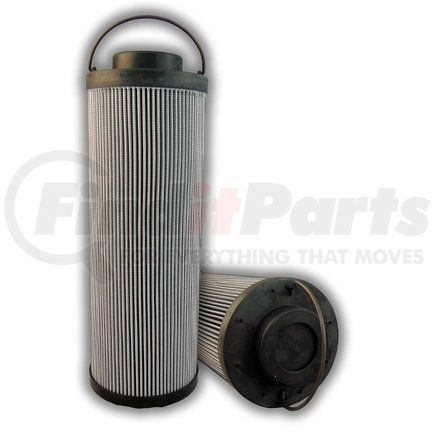

Name: Main Filter MF0693764 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Glass, Outside-In Flow
SKU: mf0693764
Price: 131.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	4.488
Outside Diameter Bottom	4.488
Inside Diameter Bottom	2.697
BPVS Setting PSI	44
Collapse Pressure	435
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	125.312
Filter Area sq in	1280
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Micron 1	10

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF40036
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0693764 replaces OEM HF40036 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Main Filter MF0693764 replaces OEM HF40036 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941

Features & Benefits

Interchange/replacement for OEM FLEETGUARD p/n HF40036
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0693764 replaces OEM HF40036 by FLEETGUARD and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Height (in.)	13.11
Micron Rating	10
Wrap	No
Bypass	Yes
Handle	Yes
Product Media	Glass
BPVS Setting (PSI)	43.5
Outside Diameter (Top)	4.49 in.
Collapse Pressure	435
Minimum Operating Temperature	-13 Deg Fahrenheit
Maximum Operating Temperature	248 Deg Fahrenheit
Fluid Type	HH / HL / HM / HV
Flow Direction	Outside-In
Dust Holding Capacity	125.31 grams
Filter Area (sq. in.)	1280
Beta Ratio 2	1000/12.4
Gasket Material	Viton
Beta Ratio 1	200/9.9

Part Interchanges

Fleetguard HF40036

MAIN FILTER MF0693764 Cross Reference

We have 1 alternatives for the MF0693764 by MAIN FILTER:

FLEETGUARD HF40036
