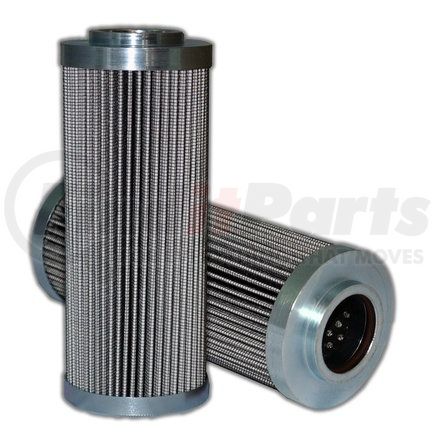

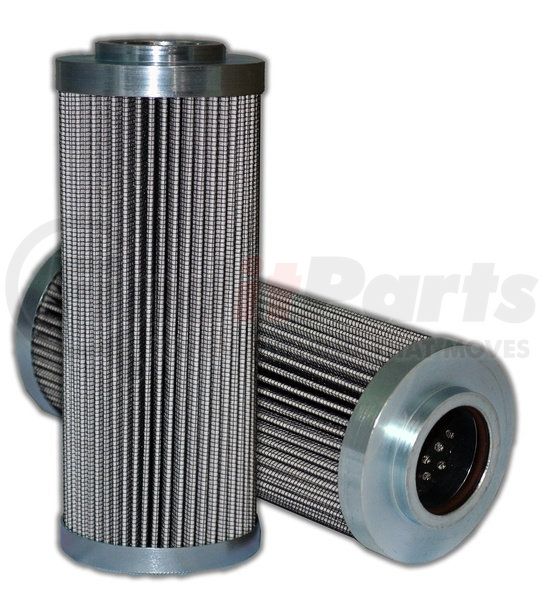

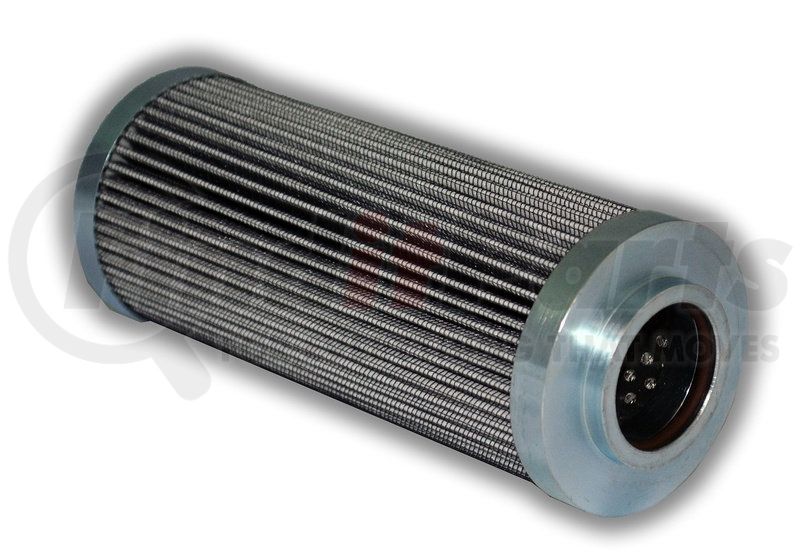

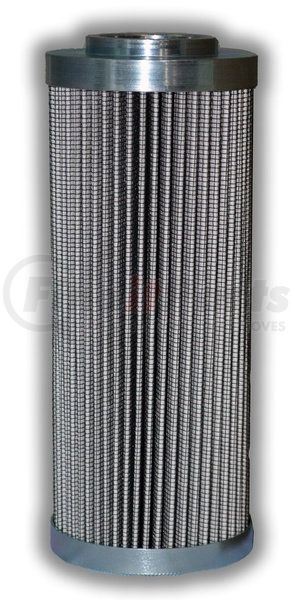

Name: Main Filter MF0584942 Aftermarket Replacement Hydraulic Filter with 5 Micron Rating, Glass, Outside-In Flow
SKU: mf0584942
Price: 106.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	2.717
Inide Diameter Top	1.343
Outside Diameter Bottom	2.717
Collapse Pressure	3045
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	29.4218
Filter Area sq in	314
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/5.4
Beta Ratio 2	1000/7.7
Micron 1	5

Features & Benefits

Interchange/replacement for OEM FINN FILTER p/n FFKPVL17252A5ABS
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0584942 replaces OEM FFKPVL17252A5ABS by FINN FILTER and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.

Features & Benefits

Interchange/replacement for OEM FINN FILTER p/n FFKPVL17252A5ABS
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0584942 replaces OEM FFKPVL17252A5ABS by FINN FILTER and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Beta Ratio 1	200/5.4
Collapse Pressure	3045
Handle	No
Dust Holding Capacity	29.42 grams
Height (in.)	6.81
Beta Ratio 2	1000/7.7
Inside Diameter (Top)	1.34 in.
Bypass	No
Minimum Operating Temperature	-13 Deg Fahrenheit
Gasket Material	Viton
Wrap	No
Product Media	Glass
Outside Diameter (Bottom)	2.72 in.
Filter Area (sq. in.)	314
Fluid Type	HH / HL / HM / HV
Micron Rating	5
Outside Diameter (Top)	2.72 in.
Maximum Operating Temperature	248 Deg Fahrenheit
Flow Direction	Outside-In

Part Interchanges

Finn Filter FFKPVL17252A5ABS

MAIN FILTER MF0584942 Cross Reference

We have 1 alternatives for the MF0584942 by MAIN FILTER:

FINN FILTER FFKPVL17252A5ABS
