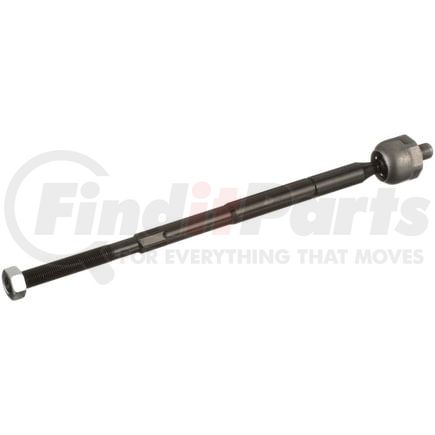

DELPHI TA6296 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA6296 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 372.50 MM |
| Color | Black and Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 34.00 MM |
| Grade Type | Standard Replacement |
| Housing Material | Steel |
| Tube Diameter | 18.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.83 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Head Drive Type | Hex |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 37.40 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| End 2 Thread Diameter | 0.551 IN |
| Tube Diameter | 0.710 IN |
| Length - Stud Center to End | 1.472 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| UPC | 00689604353424 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA6296 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 68032249AA |
| MEVOTECH | MES80646 |
| MOOG | ES80646 |
| MOOG Chassis Products | EV800616 |
| N/A | 19286225, 7B0 498 811, MES80646, JAR1239, GES80646 |
DELPHI TA6296 Fits Vehicles
- Volkswagen Routan (2009-2011)
- Chrysler Pacifica (2004-2008)
