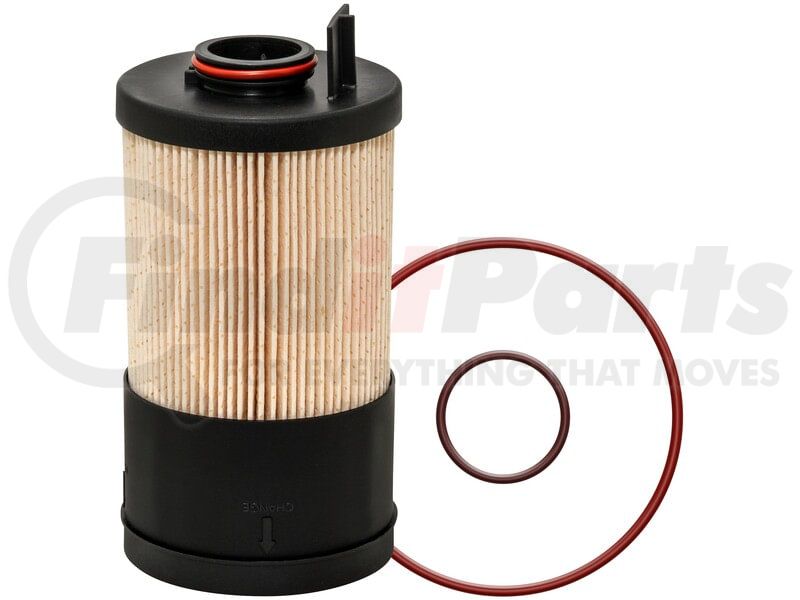

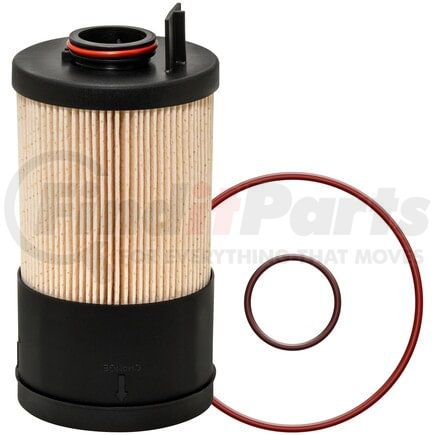

BALDWIN PF46171 Part Description
Manufacturer
Product Description
Fuel/Water Separator Element
Application Summary
Autocar, Freightliner, Western Star Trucks
Features & Benefits
- Molded service indicator allows visual monitoring through clear bowls
- Multi-stage separation section assists with free water removal
- Extended end cap maintains correct positioning inside the housing
- Sealing surfaces built to prevent internal fuel bypass
Baldwin Fuel Water Separator Filter
Service intervals on bowl-style fuel separators depend on a visible restriction cue, and the Baldwin Fuel Water Separator Filter incorporates a molded change indicator directly into the extended end cap. As fuel level rises within the clear housing, the marked flange provides a visual reference that the element has reached its service point. The internal media combines particulate filtration with staged water separation, allowing free water to collect in the bowl rather than passing through the element. Because this design installs inside a reusable housing, the upper and lower sealing surfaces must seat correctly to prevent internal bypass. The Baldwin PF46171 element is built with the proper end-cap structure and seating profile to maintain that seal within compatible separator assemblies.
BALDWIN PF46171 Specifications
Product Attributes
| Height | 7.875 |
| Inside Diameter 1 (mm) | 33 |
| Fits | Autocar, Freightliner, Western Star Trucks |
| Height (mm) | 199.9 |
| Inside Diameter 1 | 1 5/16 |
| O-Ring | [1] Attached, [2] Furnished |
| Outside Diameter 1 | 3.96875 |
| Replaces | Detroit Diesel A0000904851; Freightliner A245007; Fleetguard FS20081 |
| Remark 2 | One End |
| Outside Diameter 1 (mm) | 101.1 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440110748 |
BALDWIN PF46171 Cross References
BALDWIN PF46171 Fits Vehicles
- Peterbilt 348 (2022-2023)
- International HV507 (2022)
- International MV607 (2019, 2021-2022, 2026)
- Freightliner Cascadia (2022)
- International HV607 (2021)
- Western Star 4700SF (2019-2021)
- Freightliner 114SD (2019-2020, 2023)
- Western Star 4700SB (2019-2021)
- Freightliner B2 (2018-2019)
- Freightliner 108SD (2018-2021, 2023, 2026)
- Freightliner M2 112 (2018-2021)
- Freightliner M2 106 (2018-2023, 2026)
- Autocar LLC. Xspotter On Road (2011-2017, 2022-2023)
- Temsa Bus TS35 (2017)
- Kalmar Ottawa T2 (2018)
- Capacity Of Texas TJ6500 (2018)
- Blue Bird All American RE (2018-2021)
- Blue Bird Vision School Bus (2018-2019)
- Blue Bird All American FE (2017-2018)
