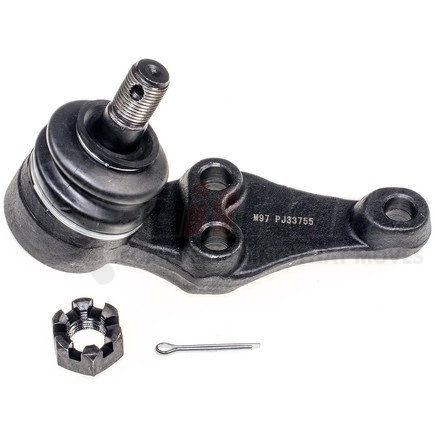

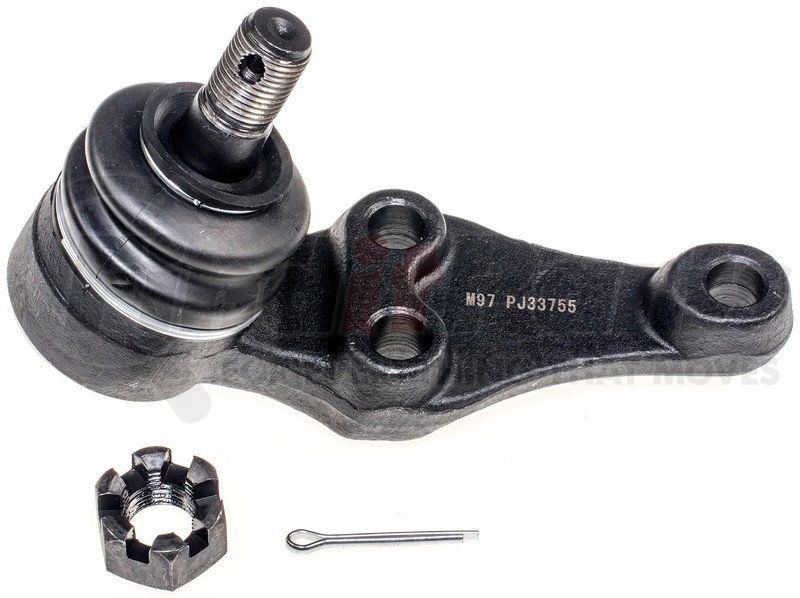

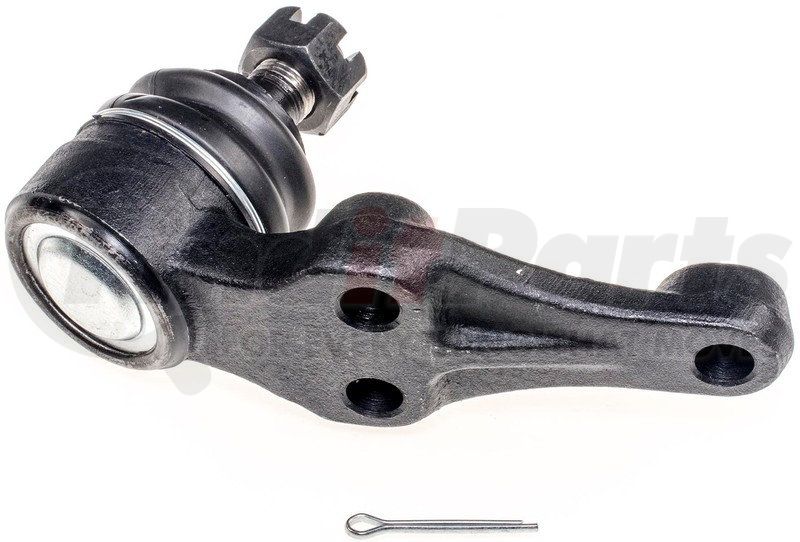

DORMAN B9923 Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Mazda Millenia 2002-95
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN B9923 Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Oui |
| Suspension Grade Type | Reemplazo estándar |
| Cotter Pin Hole | Oui |
| Mounting Hardware Included | Non |
| Mounting Hole Quantity | 3 |
| Adjustable | Non |
| Greaseable | Non |
| Stud Type | Cónico |
| Mounting Type | Con perno |
| Dust Boot Material | Policloropreno |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Package Contents | 1 Cotter Pin |
| Thread Pitch | 1.5 mm |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 1 chaveta |
| Diámetro del acoplado a presión de la caja | 45mm mm |
| Housing Press Fit Diameter | 45 mm MM |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | 1.5 mm mm |
| Nuts Included | Oui |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 16 mm MM |
| Paso de rosca | 1,5mm MM |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 16mm MM |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00843295014310 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN B9923 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 1015767, 101-5767 |
| C-Tek | 611.45005 |
| Centric Parts | 610.45005, 611.45005 |
| DORMAN | 537-035 |
| Delphi | TC2905 |
| MEVOTECH | MK9923 |
| MOOG | K9923 |
| MOOG Chassis Products | K9923 |
| Mazda | T00134550A, T00134550B |
| Mevotech Original Grade | GK9923 |
| Mevotech Supreme | MK9923 |
| QUICK STEER | K9923 |
| QuickSteer | K9923 |
| SUSPENSIA | X32BJ0172 |
| TRW | JBJ967 |
| XRF | K9923 |
| XRF Chassis | K9923 |
DORMAN B9923 Fits Vehicles
- Mazda Millenia (1995-2002)
DORMAN B9923 Customer Reviews
No reviews yet
Be the first to review this product!
DORMAN B9923 Questions & Answers
No questions yet
Be the first to ask a question about this product!
