DORMAN part description

Product Description

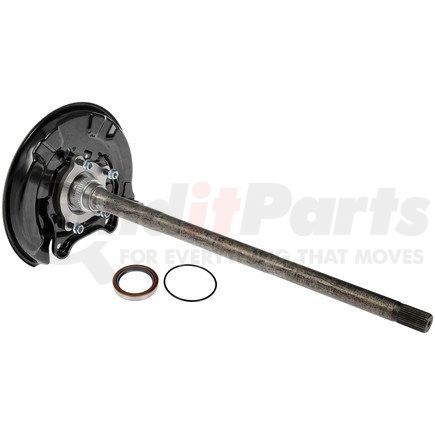

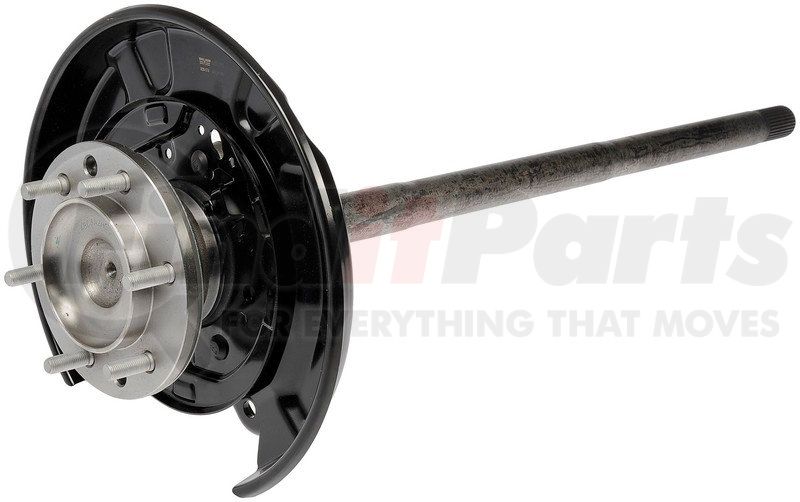

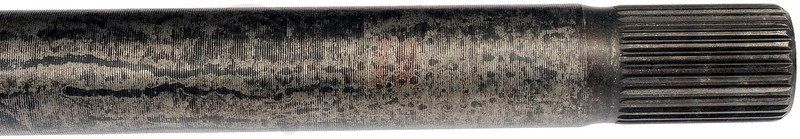

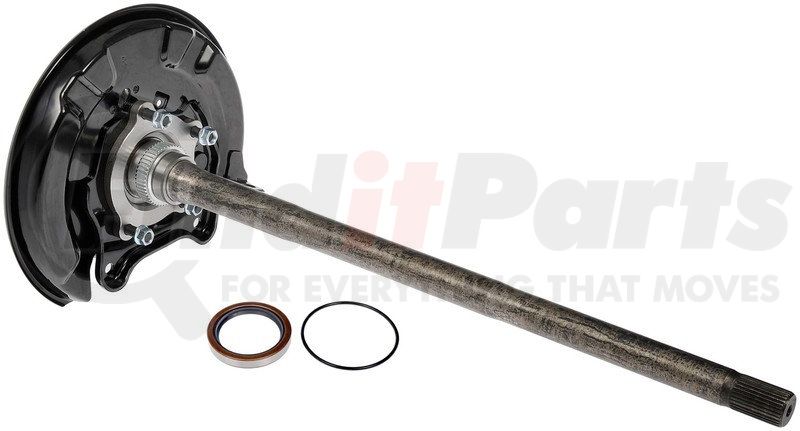

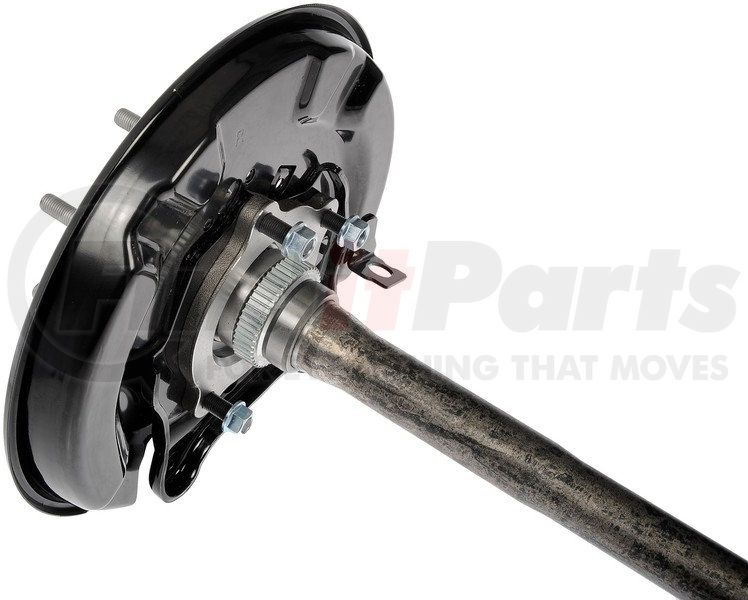

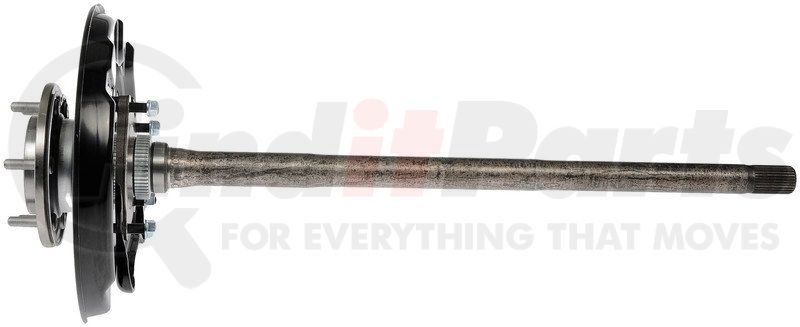

Pre-Pressed Rear Axle

Application Summary

Toyota Sequoia 2004-01

Features & Benefits

  • Easier installation - this loaded axle assembly includes a new axle shaft, wheel bearing, hub and backing plate pre-assembled and ready to install right out of the box
  • Time saver - eliminates frustrating, unpredictable work required to replace bearings without damaging other components
  • Simpler solution - eliminates the need to use potentially dangerous shop press to perform complete bearing repair
  • Quality tested - this part has undergone try-on, corrosion and material testing to ensure a quality fit and long service life

Axle, Shaft, Assembly, Assemblies, Shafts, Axles

Product Attributes

Wheel Bolt Pattern Size 6 Lug x 139.7 mm
Rust Resistant Coating Yes
Wheel Studs Included Yes
Inboard Spline Quantity 30
Outboard Spline Quantity 30
ABS Tone Ring Included Yes
Shaft Diameter 33.8 MM
Differential Case Design Type Semi-Float
Wheel Stud Thread Diameter 12 MM
Brake Hardware Included No
Wheel Stud Thread Pitch 1.5 MM
Brake Dust Shield Included Yes
Brake Backing Plate Included Yes
Axle Shaft Seal Included Yes
Hub Bearing Included Yes
Adjustable No
Compressed Length 830 mm
Length 830 mm
Material Carbon Steel
Package Contents 1 Axle Assembly; 1 Axle Housing Seal; 1 Axle Housing O-ring

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708995800
UPC 00037495919876
VMRS Code 022002001
UNSPSC 25173807

Part Interchanges

Fits Vehicles

  • Toyota Sequoia (2001-2004)
