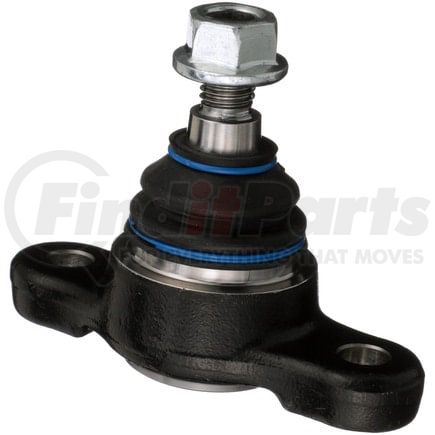

Delphi TC6490 - Ball Joint
$5449
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 58 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.543 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.925 IN |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 90.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.709 IN |
| Stud Tapered End 2 Diameter | 18 MM |
| Stud Tapered End 1 Diameter | 0.787 IN |
| Stud Tapered End 1 Diameter | 20 MM |
| Stud Thread Pitch | 2 MM |
| Length | 124.00 MM |
| Length | 4.880 IN |
| Stud Thread Diameter | 0.55 IN |
| Height | 89.99 MM |
| Stud Thread Length | 23.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604332849 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Honda S2000 (2000-2009)
