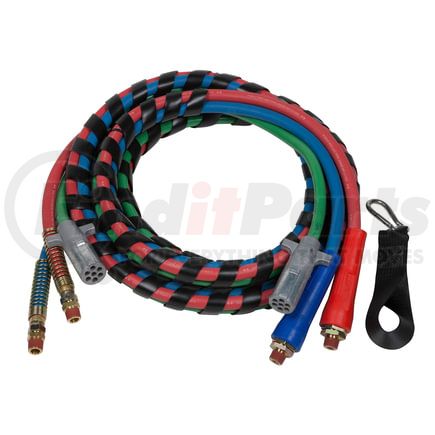

GROTE part description

Product Description

3

Features & Benefits

  • A special adhesive bonds the cable to the plug, eliminating the need for a
  • support spring and preventing moisture from entering the back of the plug
  • Air lines meet DOT FVSS No. 106 regulations and are resistant to gasoline,
  • diesel fuel, oil, and other chemicals
  • Air lines meet DOT J1402, Type A regulations
  • 3/8" I.D.
  • 225 psi working pressure
  • Corrosion-resistant anodized glad handles allow for easy coupling/uncoupling
  • High-end spiral wrap protects the cable and air lines from chaffing and kinking
  • Includes a swivel fitting for the tractor-end connection
  • Includes hanging clamp for easy installation
  • Meets SAE J560, J2394 (ABS) certifications
  • Premium ABS cords’ advanced polymer jacketing material provides complete
  • sealing & abrasion protection. (-55°F to 190°F)
  • UltraLink™ zinc die cast plugs are filled with elastomeric material that resists
  • crushing and acts as a potting to seal solid brass terminals from moisture

Product Attributes

Color Blue,Red
Material Advanced Polymer Jacketing
Prop 65 Label Required N
Standards DOT FVSS 106,DOT J1402,SAE J2394,SAE J560
Length 15 Foot
Operating temperature -55F to 190F
Package Type Ea
Operation Up to 225 PSI
Gauge 1/8 GA,2/10 GA,4/12 GA

Additional Information

Country of Origin (Primary) CA
Harmonized Tariff Code (Schedule B) 8544300000
UPC 00621935023041
VMRS Code 034003036
