BEZARES USA part description

Version: Standard
Internal Ratios: 0.86
Shifter Type: Air without 101 air kit
Input Gear: Fuller series
Assembly Arrangement: Right, Forward
Output Type: ISO 4 bolt
Intermittent Service Max. Torque (Lb. FT) 420
Intermittent Service Max. Power (HP @1000rpm) 90
Continuous Service Max. Torque (Lb. FT) 340
Continuous Service Max. Power (HP @ 1000rpm) 65
Warranty: Products manufactured by Bezares are warranted to be free of defects in materials and workmanship for a period of twelve months from date of installation if proper documentation is provided, otherwise twelve months from invoice date shall apply.

If requested by Bezares USA, Ltd., products or parts for which a warranty claim is made are to be returned transportation prepaid to Bezares USA, Ltd. Any product to be returned or claimed to be defective must be held for shipping instructions to Bezares USA, Ltd.
Chelsea Cross Reference
CHELSEA P/N NOTES
680GRAHXS3XY Order with M2 Stud Kit (This Transmission requires a Metric Stud Kit). Bezares 4100 has higher torque and HP than 680X or SH8S
680GRAHXT3XY Order with M2 Stud Kit (This Transmission requires a Metric Stud Kit). Bezares 4100 has higher torque and HP than 680X or SH8S
680GRAHXV3XY Order with M2 Stud Kit (This Transmission requires a Metric Stud Kit). Bezares 4100 has higher torque and HP than 680X or SH8S
680XRAHXS3XY Bezares 4100 has higher torque and HP than 680X
680XRAHXT3XY Bezares 4100 has higher torque and HP than 680X
680XRAHXV3XY Bezares 4100 has higher torque and HP than 680X
Muncie Cross Reference
MUNCIE P/N NOTES
SH8BU6809P1IX Order with M2 Stud Kit (This Transmission requires a Metric Stud Kit). Bezares 4100 has higher torque and HP than SH8S
SH8SU6809P1IX Bezares 4100 has higher torque and HP than SH8S

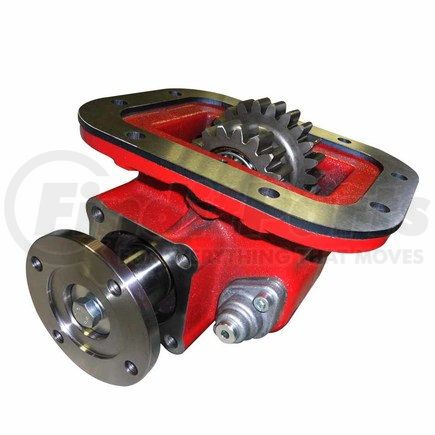

Bezares USA 4100 Series PTO

The Bezares USA 4100 Series PTO is an SAE eight hole heavy duty standard mounting pneumatic PTO with a 475 ft./lb. torque rating in a lightweight and complete package. It is known for its rugged design and all cast iron construction for maximum durability. Made with the highest quality sealing components and large, oversize bearings, this series offers high technical performance, allowing it to work even under the harshest conditions and applications.

Features & Benefits

  • Boasts industry-leading weight-to-torque ratio that provides outstanding performance for the price
  • With gears that go through deep gear tooth carburization for longer gear life
  • A low profile, compact PTO that is lightweight and installs easily
  • Designed with a robust, integrated air shifter in the housing that features a smooth engagement design to reduce clash shifting
  • Product uses industry-leading Garlock gasket material, Viton o-ring material, and shaft seals for better tear resistance and leak prevention
  • Pneumatic shifting only but also available in position 1 and 3
  • Specifically made for applications that require high torque demands such as blowers and log loaders
Type Heavy Duty
Make Eaton, Fuller, Mack, Meritor

Based in Toledo, Spain, Bezares USA® is one of the world's biggest suppliers of power takeoffs (PTOs) and hydraulic pumps and accessories. It maintains a dominant market share in Spain, the U.K.,  and Sweden and caters to customers in more than 80 countries. With decades of experience in the European market, Bezares offers a wide range of PTO units and components for Isuzu, Mercedes, Mitsubishi, and Volvo transmissions, hydraulic pumps, dump pumps, birotational gear pumps, piston pumps, motors, and a range of auxiliary hydraulic components for trucks and industrial vehicles. All Bezares USA components draw from more than 90 years of experience and leadership in the industry.
