Gates G23374-3232 - Code 62 O-Ring Flange Heavy with Captive Flange (GlobalSpiral MAX Pressure)
$31899
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

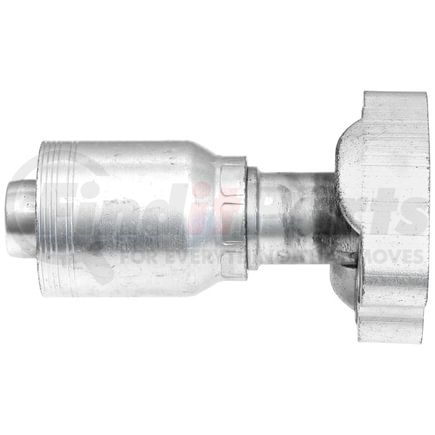

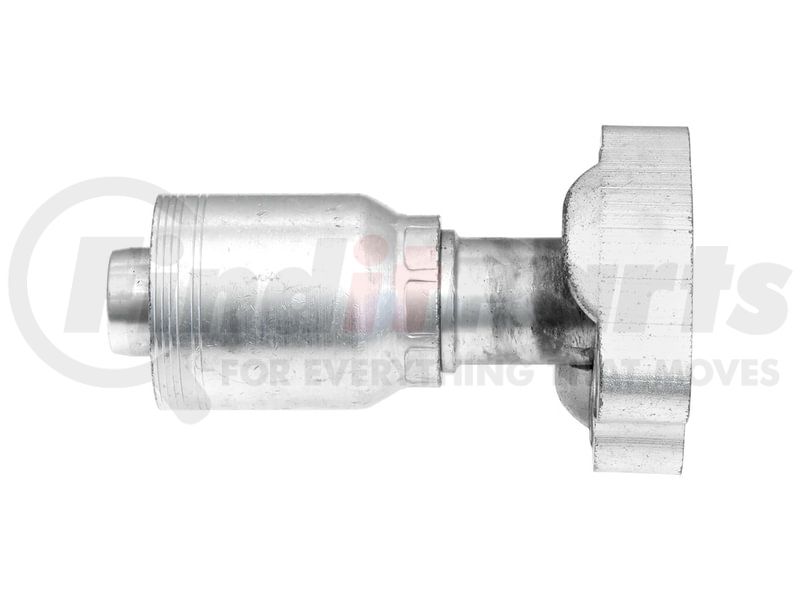

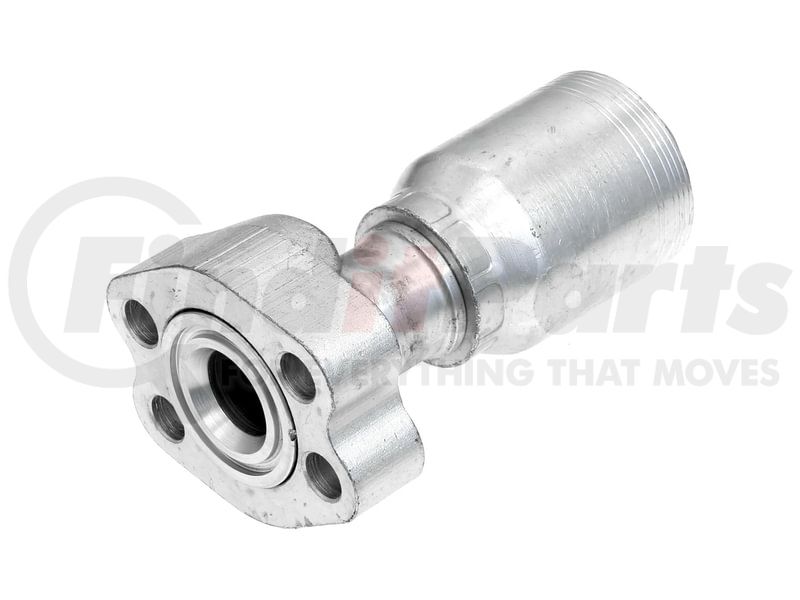

Code 62 O-Ring Flange Heavy with Captive Flange (GlobalSpiral MAX Pressure)
Features & Benefits
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
- A flexible, easier-to-route hose assembly to replace 2 in. rigid pipe on crowded equipment platforms
- A stem machined from a single piece of solid steel for greater strength and integrity
- A no-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks
Product Attributes
| Coupling Description | GlobalSpiral MAX Code 62 O-Ring Flange Heavy w/ Captive Flange |
| Industrial Description | 32GSM-32FLHCFM |
| Inside Diameter | 2 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |

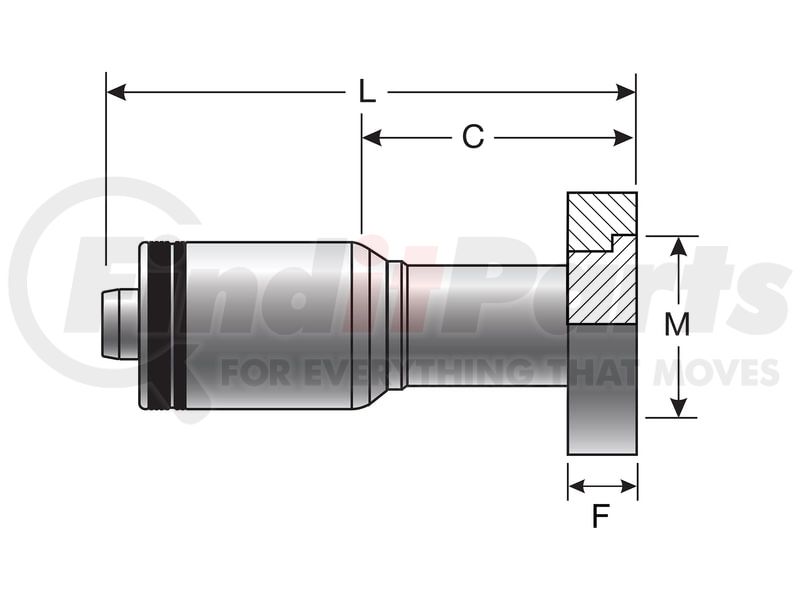

| Flange Thickness | .5 in |
| Flange Diameter | 3.13 IN |
| Cut-Off Length | 5.41 IN |
| Length | 9.9 IN |
| Inside Diameter | 50.8 MM |
| Flange Thickness | 12.7 MM |
| Flange Diameter | 79.5 MM |
| Cut-Off Length | 137.4 MM |
| Length | 251.4 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075573593 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
