DELPHI TC6165 Part Description
Manufacturer
Product Description

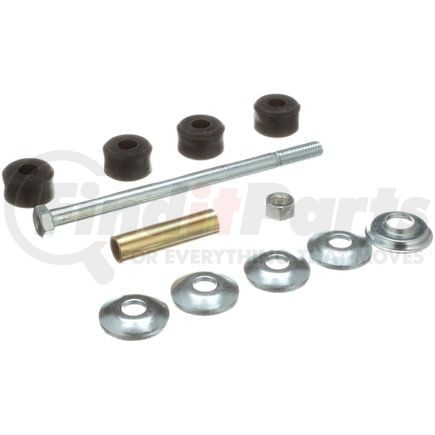

Suspension Stabilizer Bar Link Kit
Features & Benefits
- Delphi sway bar links are fatigue tested to avoid failure
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6165 Specifications
Product Attributes
| Position(s) | Front |
| Item Grade | Standard Replacement |
| Bushing Outside Diameter | 1.0 IN |
| Bushing Outside Diameter | 25.5 MM |
| Bushing Color | Black |
| Length | 6.14 IN |
| Length | 156.0 MM |
| End 1 Type | Bushing |
| End 2 Type | Bushing |
| Pre-Greased | No |
| Bushings Included | Yes |
| Dust Boot Included | No |
| Grease Fittings Included | No |
| Sleeve Length | 2.05 IN |
| Sleeve Length | 52.0 MM |
| Bolt Thread Size | 27 |
| Sleeve Diameter | 0.51 IN |
| Sleeve Diameter | 13.0 MM |
| Center Bolt Head Size | SW14 |
| Washers Included | Yes |
| Grade Type | Standard Replacement |
| Bolts Included | Yes |
| Greaseable | No |
| Weight | 0.44 lb |
| Bushing Material | Rubber |
| Bolt Length | 6.14 IN |
| Bolt Length | 156.0 MM |
| Bolt Thread Diameter | 0.375 MM |
| Bolt Thread Pitch | 1.588 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 0.37 IN |
| Bushing Inside Diameter | 9.5 MM |
| Bolt Thread Diameter | 0.01 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604335932 |
| VMRS Code | 016004023 |
| UNSPSC | 25172001 |
DELPHI TC6165 Cross References
DELPHI TC6165 Fits Vehicles
- Toyota Tacoma (1995-2001)
