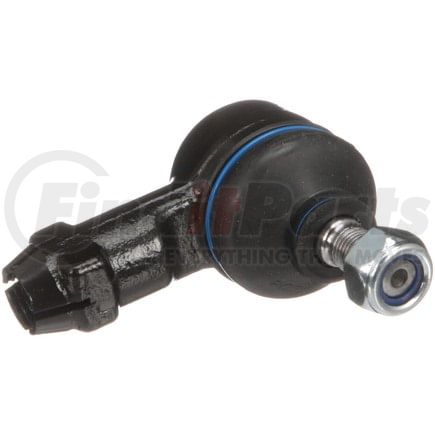

(888) 312-8812 Login SignupDELPHI TA5970 Tie Rod End
Tap to view 5 more
$3349
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Dec 30
DELPHI TA5970 Part Description
DELPHI TA5970 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 78.00 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 10.00 MM |
| Height | 73.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.51 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 60.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| Grade Type | Standard |
| End 2 Thread Diameter | 0.394 IN |
| Length - Stud Center to End | 2.362 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| UPC | 00689604347263 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5970 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4032 |
| MOOG Chassis Products | ES3158RL |
| Volkswagen | 307-419-801, 307-419-802-11, 307-419-812-2, VW3074198121 |
| TRW | JTE1895 |
| Dorman | 534-512 |
| N/A | 5W0 419 812 |
DELPHI TA5970 Fits Vehicles
- Volkswagen Fox (1987-1993)
