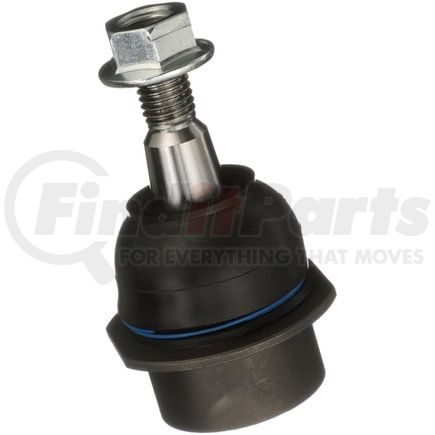

(888) 312-8812 Login SignupDELPHI TC7135 Ball Joint
Tap to view 9 more
$6699
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Feb 18
DELPHI TC7135 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC7135 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left, Front Left Lower. For the position specific to your vehicle, refer to the Applications. |
| Material | Steel |
| Maximum Outside Diameter | 1.890 IN |
| Maximum Outside Diameter | 48.00 MM |
| Color | Silver |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 48 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.425 IN |
| Height | 87.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.846 IN |
| Stud Thread Length | 21.5 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.787 IN |
| Stud Tapered End 2 Diameter | 20 MM |
| Stud Tapered End 1 Diameter | 0.689 IN |
| Stud Tapered End 1 Diameter | 17.5 MM |
| Stud Thread Pitch | 2 MM |
| Length | 48.00 MM |
| Length | 1.890 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604353462 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC7135 Cross References
DELPHI TC7135 Fits Vehicles
- Cadillac CTS (2008-2014)
- Cadillac STS (2005-2011)
- Cadillac SRX (2004-2009)
