DELPHI TC7663 Part Description
Manufacturer
Product Description

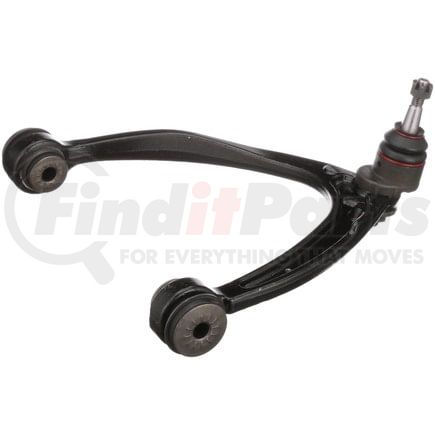

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC7663 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Control Arm Maximum Width | 11.870 IN |
| Control Arm Maximum Width | 301.50 MM |
| Control Arm Color | Black |
| Control Arm Maximum Length | 11.413 IN |
| Control Arm Maximum Length | 289.90 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Greaseable | No |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | US |
| UPC | 00689604341513 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC7663 Cross References
DELPHI TC7663 Fits Vehicles
- GMC Yukon XL (2015-2019)
- Chevrolet Suburban (2014-2019)
- Cadillac Escalade EXT (2007-2013)
- Cadillac Escalade ESV (2007-2014)
- GMC Sierra 1500 (2007-2019)
- Chevrolet Silverado 1500 (2007-2016)
- Chevrolet Suburban 1500 (2007-2014)
- Chevrolet Avalanche (2007-2013)
- GMC Yukon (2007-2019)
- Chevrolet Tahoe (2007-2019)
- Cadillac Escalade (2007-2019)
- GMC Yukon XL 1500 (2000-2014)
