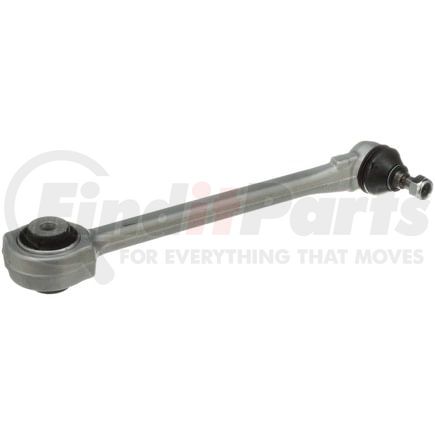

(888) 312-8812 Login SignupDELPHI TC6750 Control Arm and Ball Joint Assembly
Tap to view 4 more
$19399
Limited availability at this price!
1 Day Lead Time
Get as soon as Friday, Oct 9
DELPHI TC6750 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6750 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Tubular |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 1.772 IN |
| Control Arm Maximum Width | 45.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 3.717 IN |
| Ball Joint Stud Length | 94.40 MM |
| Control Arm Maximum Length | 17.126 IN |
| Control Arm Maximum Length | 435.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 12.10 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.472 IN |
| Thread Diameter | 0.472 IN |
| Mounting Hole Diameter | 0.476 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Country of Origin (Primary) | TR |
| UPC | 00689604330579 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC6750 Cross References
DELPHI TC6750 Fits Vehicles
- Mercedes-Benz GLK250 (2013-2015)
- Mercedes-Benz GLK350 (2010-2015)
