DELPHI TC6388 Part Description
Manufacturer
Product Description

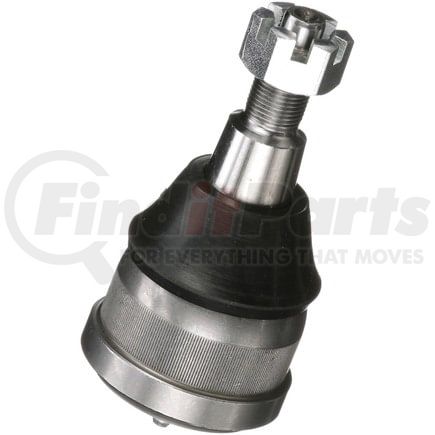

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6388 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.500 IN |
| Maximum Outside Diameter | 63.50 MM |
| Color | Gray |
| Stud Thread Diameter | 0.688 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 63.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 5.492 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 1.181 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.939 IN |
| Stud Tapered End 2 Diameter | 23.85 MM |
| Stud Tapered End 1 Diameter | 1.122 IN |
| Stud Tapered End 1 Diameter | 28.5 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Diameter | 17.48 MM |
| Height | 139.50 MM |
| Stud Thread Length | 30 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604325636 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC6388 Cross References
DELPHI TC6388 Fits Vehicles
- GMC P35/P3500 Van (1973-1974)
- Chevrolet P30 Van (1973-1974)
- GMC P3500 (1979-1999)
- GMC P35 (1975-1978)
- Chevrolet P30 (1975-1999)
