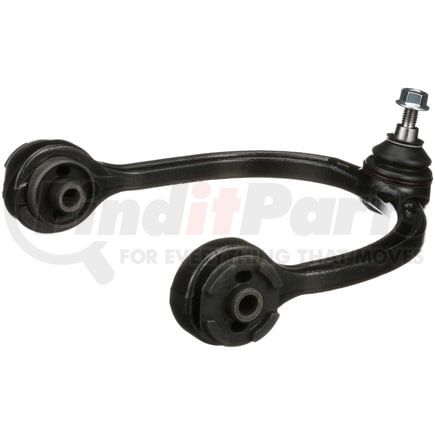

(888) 312-8812 Login SignupDELPHI TC5666 Control Arm and Ball Joint Assembly
Tap to view 13 more
$15849
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TC5666 Part Description
DELPHI TC5666 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 297.50 MM |
| Control Arm Maximum Width | 11.713 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Stud Length | 25.00 MM |
| Ball Joint Stud Length | 0.984 IN |
| Control Arm Maximum Length | 297.50 MM |
| Control Arm Maximum Length | 11.713 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604314371 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC5666 Part Interchanges
| Brand | Part Number |
|---|---|
| Chrysler | 4895 669AA, 4895 669AB, 5180 597AA, 5180 597AB, 5180 597AC |
| MAS Industries | CB29023, CB29023PR, CB81127, CB81127PR |
| Dorman | 52-1703 |
| MOOG Chassis Products | RK621537 |
| N/A | CMS251008, JTC1528, GS251008, JTC2721 |
DELPHI TC5666 Fits Vehicles
- Dodge Challenger (2017-2021)
- Dodge Charger (2007-2021)
- Chrysler 300 (2005-2022)
- Dodge Magnum (2005-2008)
