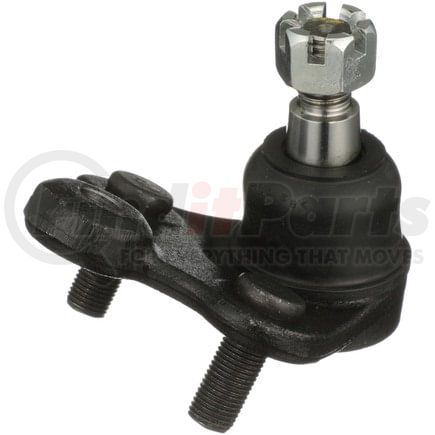

DELPHI TC3810 Ball Joint

★★★★★ (0)
Delphi TC3810 Suspension Ball Joint Ball Joint
DELPHI
Tap to view 7 more

$28.49

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 25
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI TC3810 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC3810 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Right Lower
MaterialSteel
ColorBlack
Stud Thread Diameter14 MM
Castle Nut IncludedYes
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width90 MM
TypePremium
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedYes
Mounting Bolt Length37.50 MM
Washers IncludedNo
Height3.386 IN
Nuts IncludedYes
Mounting Hole Quantity3
Stud Thread Length0.827 IN
Stud Thread Length21 MM
Stud TypeThreaded
Mounting TypeBolt-In
Distance Between Mounting Holes60.00 MM
Dust Boot MaterialRubber
Bushing Quantity0
Mounting Bolt Shank Diameter13.00 MM
Mounting Bolt Head Diameter21.90 MM
Mounting Bolts IncludedYes
Mounting Bolt Thread Pitch1.25 MM
Mounting Bolt Thread Length30.00 MM
Mount Plate IncludedNo
Tapered StudYes
Stud Tapered End 2 Diameter0.789 IN
Stud Tapered End 2 Diameter20.05 MM
Stud Tapered End 1 Diameter0.689 IN
Stud Tapered End 1 Diameter17.5 MM
Stud Thread Pitch2 MM
Length105.00 MM
Length4.130 IN
Stud Thread Diameter0.55 IN
Mounting Bolt Length1.480 IN
Height86.00 MM
Mounting Bolt Shank Diameter0.510 IN
Mounting Bolt Head Diameter0.860 IN
Mounting Bolt Thread Length1.180 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708806590
Country of Origin (Primary)TR
Harmonized Tariff Code (HTS)8708807000
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604346884
VMRS Code016001015
UNSPSC25174203

DELPHI TC3810 Cross References

BrandPart Number
Beck/Arnley101-6021
DORMANBJ59083, 531-110, BJ59083PR
Dorman531-111
Honda51220-SWA-A01
MAS IndustriesBJ59084, BJ59084PR
MEVOTECHMS60519
N/AK500306, MS60519, GS60519
TRWJBJ1215

DELPHI TC3810 Fits Vehicles

  • Honda CR-V (2010-2011)
