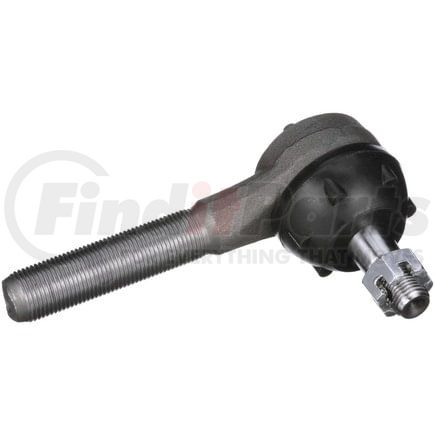

DELPHI TA5767 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5767 Specifications
Product Attributes
| Position(s) | At Pitman Arm, Left Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 134.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 44.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.500 IN |
| Height | 82.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 0.88 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Length - Stud Center to End | 112.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 20 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.688 IN |
| End 2 Thread Diameter | 12.70 MM |
| Grade Type | Standard Replacement |
| End 1 Thread Diameter | 17.48 MM |
| Length - Stud Center to End | 4.409 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604325582 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA5767 Cross References
DELPHI TA5767 Fits Vehicles
- Jeep Wagoneer (1984-1990)
- Jeep Comanche (1986-1990)
- Jeep Wrangler (1987-1990)
- Jeep Cherokee (1984-1990)
