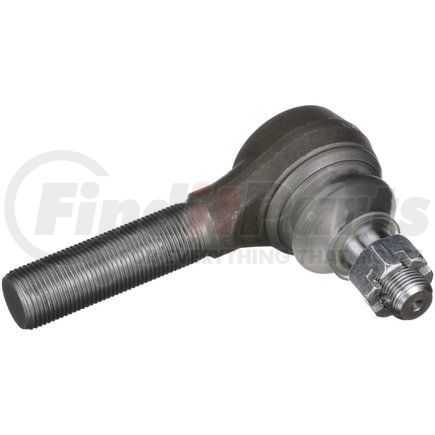

(888) 312-8812 Login SignupDELPHI TA5598 Tie Rod End
Tap to view 5 more
$12049
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Feb 18
DELPHI TA5598 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5598 Specifications
Product Attributes
| Position(s) | Right |
| Item Grade | Standard Replacement |
| Length | 185.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 69 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.875 IN |
| Height | 121.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 4.1 lb |
| Bearing Material | Steel |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Length - Stud Center to End | 150.00 MM |
| Dust Boot Material | Thermoplastic Polyurethane (TPU) |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 14 |
| End 1 Threads Per Inch | 12 |
| End 1 Thread Diameter | 1.125 IN |
| End 2 Thread Diameter | 22.22 MM |
| Grade Type | Standard Replacement |
| End 1 Thread Diameter | 28.57 MM |
| Length - Stud Center to End | 5.906 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604321522 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA5598 Cross References
| Brand | Part Number |
|---|---|
| Ford | F1HZ-3A130A, F1HZ-3A130B, F3HZ-3A130B |
| MOOG Chassis Products | ES3176R |
DELPHI TA5598 Fits Vehicles
- Ford FT900 (1992-1998)
- Ford F-800 LPO (1995-1998)
- Ford F-600 LPO (1992-1994)
- Ford LLA9000 (1997)
- Ford LN9000 (1991-1997)
- Ford LTLA9000 (1997)
- Ford LTA9000 (1997)
- Ford LTS9000 (1991-1997)
- Ford LA9000 (1997)
- Ford LS9000 (1991-1997)
- Ford L9000 (1991-1997)
- Ford CFT8000 (1992-1994)
- Ford F-800 (1992-1999)
- Ford F-700 (1992-1998)
- Ford F-600 (1992-1994)
- Ford CF7000 (1992-1994)
- Ford CF8000 (1992-1994)
