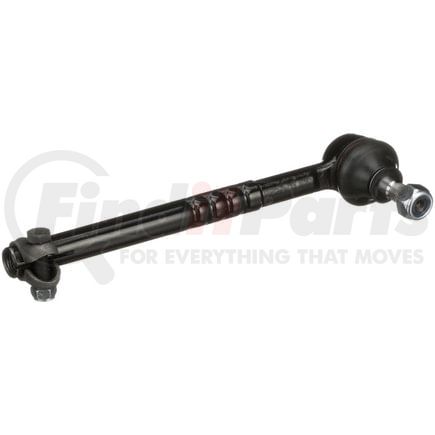

(888) 312-8812 Login SignupDELPHI TA5535 Tie Rod End
Tap to view 5 more
$3699
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 4
DELPHI TA5535 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5535 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 244.00 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 39 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 12.00 MM |
| Height | 74.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.16 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 8.839 IN |
| Length - Stud Center to End | 224.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604321317 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5535 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3933 |
| DORMAN | T2909, T2909PR |
| Dorman | 534-437 |
| MEVOTECH | MES2909 |
| MOOG Chassis Products | ES2909 |
| N/A | GES2909, T2909, MES2909 |
| Toyota | 45460-29315, 45470-29085, 4547029084, 4547029165 |
DELPHI TA5535 Fits Vehicles
- Toyota Van Wagon (1988)
- Toyota Van (1986-1988)
DELPHI TA5535 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TA5535 Questions & Answers
No questions yet
Be the first to ask a question about this product!
