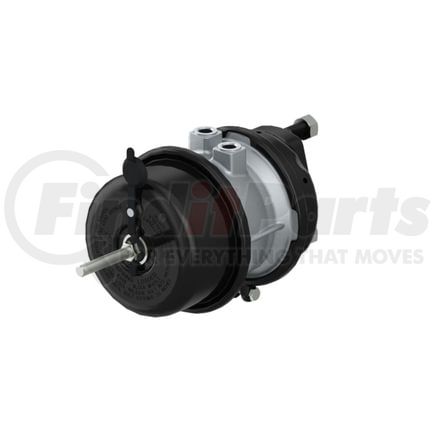

WABCO 9253470020 - Air Brake Spring Brake Actuator - Tristop Series, Double Diaphragm, 18/24
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
WABCO part description
Product Attributes
| Distance between bolts | 120.6 mm |
| Port Angle | 0° |
| Push-Rod Length | 15 mm |
| Weight | 15.43234 |
| Type | 18/24 |
| Port thread 11 | 3/8" - 18 NPTF |
| Return-Spring Force | 200 N |
| Max. operating pressure | 145.0 psi |
| Bolt Lengths | 43.0 mm |
| Release Pressure | 5.1 bar |
| Port thread 12 | 3/8" - 18 NPTF |
| Push-rod thread | Ball R8 |
| Stroke | 64.0 mm |
| Version | Without boot |
| Total Length | 329.5 mm |
| Type Of Operation | Disc |
| Temperature Range | -40°C to +80°C |
| Bolt Threads | M16 x 1.5 |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
