(888) 312-8812 Login SignupQUICK REL VALVE

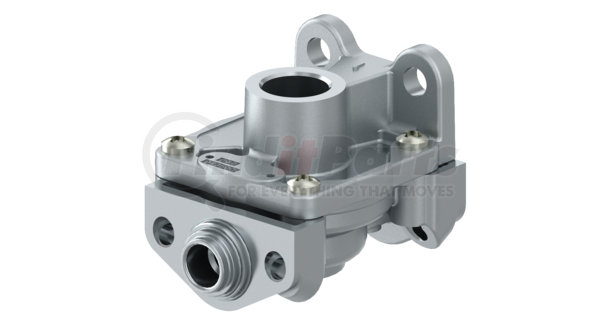

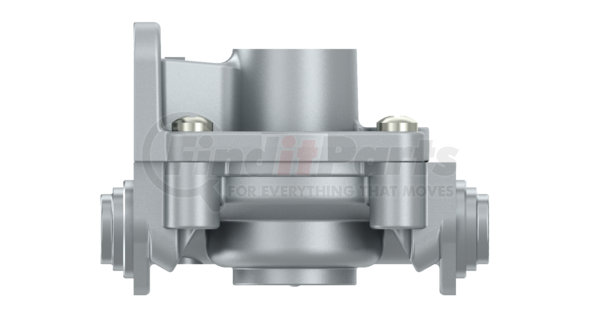

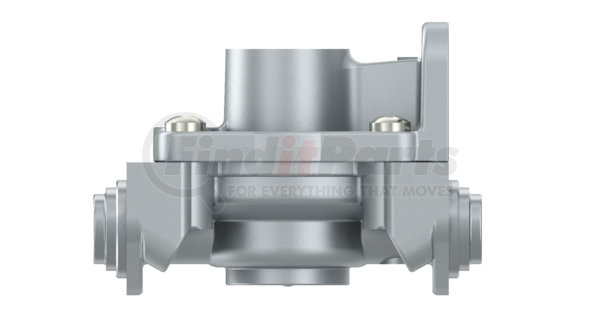

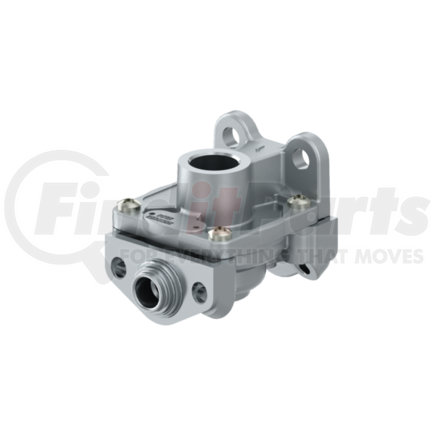

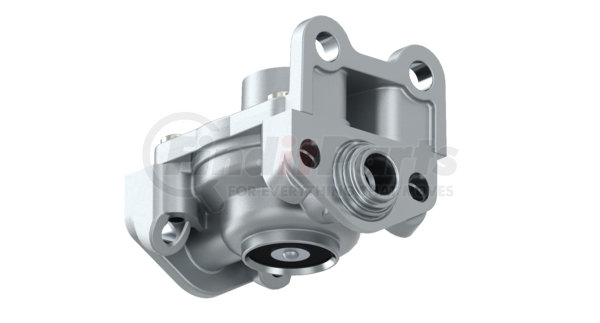

The WABCO Air Brake Quick Release Valve improves brake release response by exhausting compressed air close to the brake chambers instead of routing it back through long primary air lines. Faster pressure release helps minimize brake drag that can generate excess heat and accelerate friction lining wear during normal operation. With the WABCO 9735001040, foundation brakes can disengage more efficiently to support smoother vehicle operation and help protect wheel-end components. Its direct-mount design makes it well suited for compatible heavy-duty air brake systems requiring responsive brake release.
| Weight | 0.63052 |
| Max. operating pressure | 145.0 psi |
| Max. operating pressure | 145.0 psi |
| Mounting | 2x Ø 9.5 mm |
| Distance between bolts | 38 mm |
| Size | 94 x 65 x 98 |
| Exhaust | Flap Exhaust |
| Port thread 1 | 1/2" - 14 NPTF |
| Calculated Volume (dm³) | 0.59878 |
| Brand | Part Number |
|---|---|
| MERITOR | S9735001040 |
| WABCO | S9735001040 |
