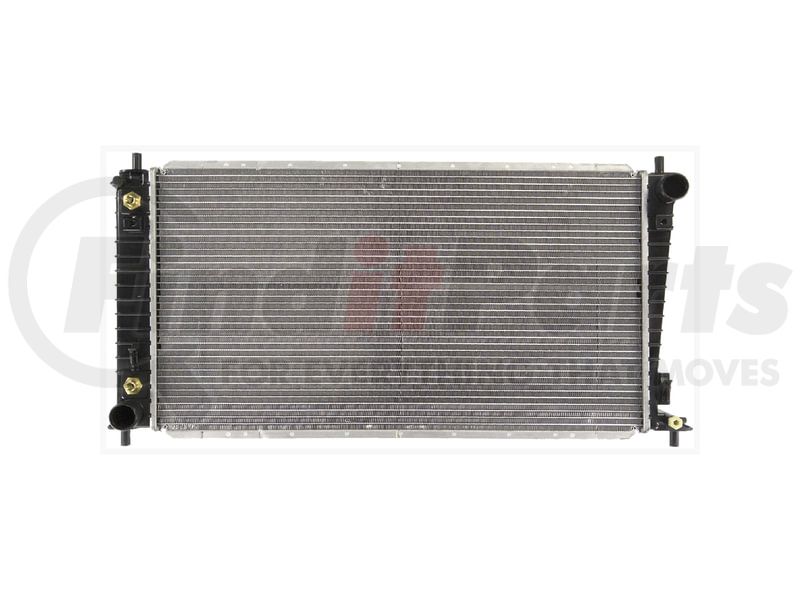

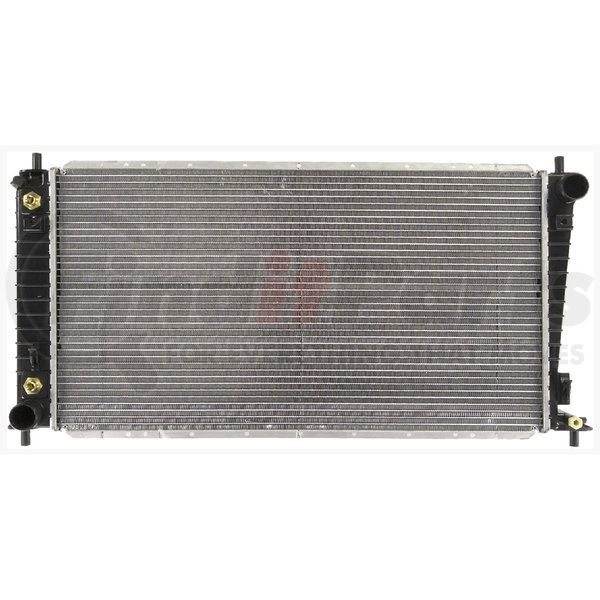

Name: Reach Cooling 41-1831 Radiator
SKU: 411831
Availability: OutOfStock

REACH COOLING part description

Product Description

Radiator

Application Summary

97-98 Ford Expedition;97-98 Ford F-150/F-250

Features & Benefits

Folded fin edges increase stability and heat disbursement properties.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

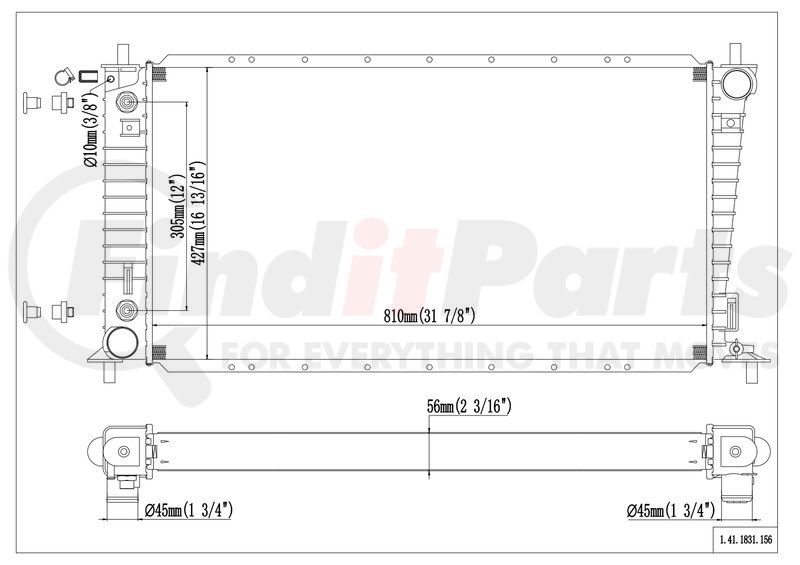

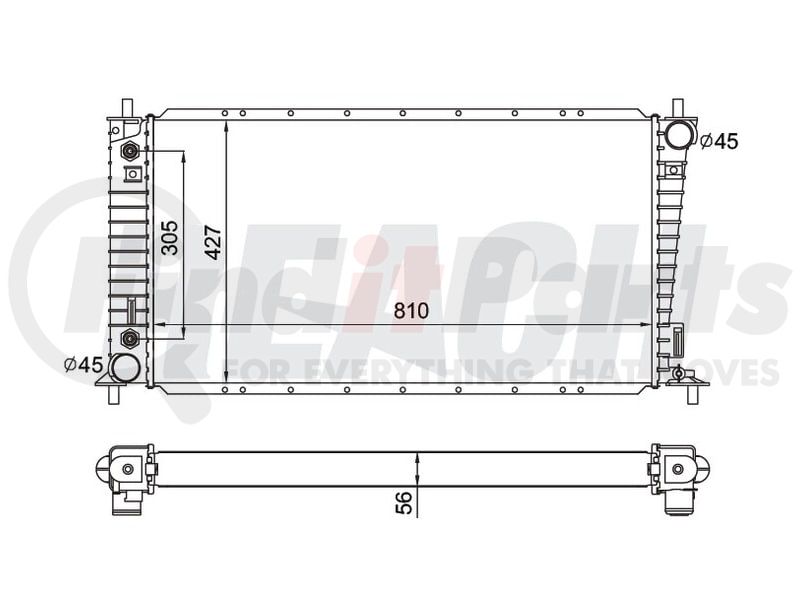

Product Attributes

Engine Oil Cooler Included	No
Core Width	16 4/5 IN
Core Material	Aluminum
Fitting Connection Type	Threaded
Outlet Header Length	17.25 IN
Outlet Location	Lower Left
Tank Material	Plastic
Inlet Location	Upper Right
Core Row Quantity	2
Core Height	31 7/8 IN
Inlet Header Length	17 1/4 IN
Inlet Header Width	3.062 IN
Trans Cooler Adapter Fittings Included (True/False)	True
Outlet Header Width	3 1/16 IN
Outlet Diameter	1.75 IN
Transmission Oil Cooler Included	Yes
Inlet Diameter	44.5 MM
Radiator Cap Included	No
Core Thickness	2.187 IN
Transmission Oil Cooler Distance between Fittings	12 IN
Inlet Header Width	77.774 mm
Threaded Size-1	5/8-18UNF-2B*1/2-20UNF-2B
Transmission Oil Cooler Distance between Fittings	304.8 MM
Inlet Header Length	438.2 MM
Down Flow Or Cross Flow Type	Cross Flow
Core Height	809.625 MM
Outlet Diameter	44.45 MM
Outlet Header Width	77.8 MM
Inlet Diameter	1 3/4 IN
Threaded Size-2	5/8-18UNF-2B*1/2-20UNF-2B
Core Thickness	56 MM
Outlet Header Length	437.8 MM
Transmission Oil Cooler Distance between Fittings	305 MM
Core Thickness	55.549 MM
Core Width	426.72 MM
Inlet Diameter	44.45 mm
Inlet Header Length	438.15 mm
Outlet Diameter	45 MM
Core Height	809.6 MM
Core Width	426.7 MM
Inlet Header Width	78.3 MM
Outlet Header Length	438.15 mm
Outlet Header Width	77.774 mm

Additional Information

Country of Origin (Primary)	CN
UPC	06949521707705
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

Fits Vehicles

Ford Lobo (1997-1998)
Ford F-250 (1997-1998)
Ford F-150 (1997-1998)
Ford Expedition (1997-1998)
