CENTRIC part description
Product Description

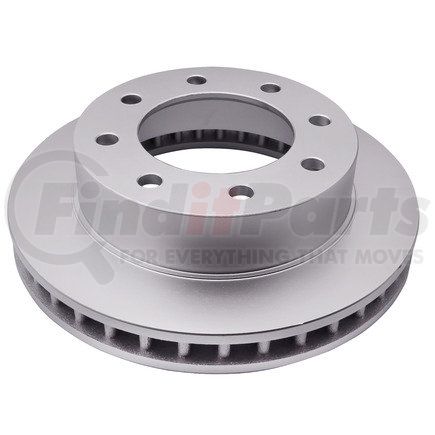

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 11.690 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 25.720 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 2 |
| Discard Thickness | 36.500 MM |
| Discard Thickness | 1.437 IN |
| Nominal Thickness | 38.000 MM |
| Nominal Thickness | 1.496 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 89.200 MM |
| Overall Height | 3.512 IN |
| Outside Diameter | 324.800 MM |
| Outside Diameter | 12.787 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 118.100 MM |
| Center Hole Diameter | 4.650 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.500 MM |
| Stud/Lug Hole Diameter | 0.650 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393477 |
CENTRIC 320.66042F Cross Reference
We have 3 alternatives for the 320.66042F by CENTRIC:
Fits Vehicles
- GMC Sierra 1500 (2004)
- GMC Sierra 1500 HD Classic (2007)
- Chevrolet Silverado 1500 HD Classic (2007)
- GMC Sierra 2500 (1999-2004)
- Hummer H2 (2003-2009)
- GMC Yukon XL 2500 (2000-2013)
- Chevrolet Silverado 2500 (1999-2004)
- GMC Sierra 2500 HD (2005)
- GMC Sierra 1500 HD (2001-2003, 2005-2006)
- GMC Savana 2500 (2003-2020)
- Chevrolet Suburban 2500 (2000-2013)
- Chevrolet Silverado 1500 HD (2001-2003, 2005-2006)
- Chevrolet Silverado 1500 (2004-2005)
- Chevrolet Express 2500 (2003-2020)
- Chevrolet Avalanche 2500 (2002-2006)
- Cadillac DeVille (2000-2005)
