(888) 312-8812 Login SignupRAYBESTOS 56829 Raybestos Specialty - Truck Brake Rotor
$19549
Limited availability at this price!
In Stock
Get as soon as Wednesday, Sep 30
RAYBESTOS 56829 Part Description
Manufacturer
Product Description

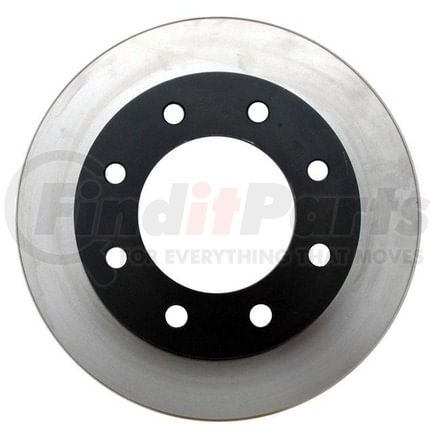

Raybestos Specialty - Truck Brake Rotor
Application Summary
2020-2003 Chevrolet Express 2500 Front, 2004-1999 Chevrolet Silverado 2500 Front, 2020-2003 GMC Savana 2500 Front, 2005-2000 Cadillac DeVille Front, 2009-2003 Hummer H2 Front, 2006-2005,2003-2001 Chevrolet Silverado 1500 HD Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring:Optimal coolingReduced fadeLess noiseIncreased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 56829 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.65 IN |
| Center Hole Diameter | 118.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.437 IN |
| Discard Thickness | 36.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.635 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.5 IN |
| Nominal Thickness | 38.1 MM |
| Outside Diameter | 12.795 IN |
| Outside Diameter | 325 MM |
| Overall Height | 3.51 IN |
| Overall Height | 89.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730524009 |
RAYBESTOS 56829 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-864 |
| ADVANCE AUTO PARTS | 145261, YH145261, YH145261C, YH145261P |
| AMERICAN REMANUFACTURED | 89-44042 |
| AUTOPARTSOURCE | 593235 |
| AUTOSPECIALTY | AR8642E |
| AUTOXTRA | 8056829, AX550732, AX55056 |
| AUTOZONE | 55056, 55056DG, DL55056 |
| BENDIX | 145261, E12671064 |
| BOSCH | 25010563, RBR55056 |
| BRAKEBEST | 25010563, 56829, 56829FZN, 56829PER, 56829R, 56829RGS, 81-125653 |
| BREMBO | 09.8831.85, 09.9022.10, 09.9022.11, 27220 |
| CALIFORNIA DRUM & ROTOR | 125653 |
| CENTRIC | 120.66042, 120.66042CRY, 121.66042, 125.66042, 125.66042CRY, 126.66042CSL, 126.66042CSR, 126.66042SL, 126.66042SR, 127.66042CL, 127.66042CR, 127.66042L, 127.66042R, 128.66042CL, 128.66042CR, 128.66042L, 128.66042R, 227.66042L, 227.66042R, 320.66042, 320.66042F, 321.66042 |
| CONTINENTAL-CONTITECH | CW38700 |
| Casting Numbers | 15718989, 211252-C, 325504 |
| Centric Parts | 120.66042, 120.66042CRY, 121.66042, 125.66042, 125.66042CRY, 126.66042CSL, 126.66042CSR, 126.66042SL, 126.66042SR, 127.66042CL, 127.66042CR, 127.66042L, 127.66042R, 128.66042CL, 128.66042CR, 128.66042L, 128.66042R, 227.66042L, 227.66042R, 320.66042, 320.66042F, 321.66042 |
| DURA CORP | BR55056 |
| DuraGo | BR55056, BR55072, BR5507202 |
| EUCLID | E-12340 |
| GM | 15718986, 18060215 |
| GUARDIAN | 52-125653 |
| General Motors | 15718986, 18060215 |
| HUMMER | 15942195 |
| MAGMA PRODUCTS | PSR225210 |
| MIGHTY DISTRIBUTING SYSTEM | 55056 |
| NEOTEK | 1072018GF |
| NEWTEK AUTOMOTIVE | 55056 |
| Newtek Automotive USA | 55056 |
| POWERSTOP | AR8642EVC |
| PROMAX | 14-55056, 20-55056 |
| PRONTO | BR55072 |
| Parts Master | 126036 |
| QUALIS | 55056 |
| QUALITY BRAND | 55056, Q4039 |
| STANDARD ROTORS AND DRUMS | 55056 |
| THE UNIVERSAL GROUP | 101421 |
| TopNotch | TN56829GEO |
| UAP | 2055056, 55056 |
| Ultra Brake | 55430 |
| Universal | 101421 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51314 |
| WABCO | PS125653 |
| WABCO - Archived | PS125653 |
| WAGNER | BD126036E |
| WAGNER BRAKE | BD125653 |
| WINHERE | 6620698, YH2576 |
| WORLDPAC | 1407-25837, 1427-530022 |
RAYBESTOS 56829 Fits Vehicles
- Chevrolet Express Pasajeros (2010-2014)
- Chevrolet Express Cargo (2010-2013)
- Chevrolet Silverado 1500 Classic (2007)
- Chevrolet Silverado 1500 (2001-2007)
- GMC Sierra 1500 Classic (2007)
- GMC Sierra 1500 (2001-2006)
- GMC Sierra 2500 HD (2001-2005)
- GMC Sierra 1500 HD Classic (2007)
- Chevrolet Silverado 1500 HD Classic (2007)
- Hummer H2 (2003-2009)
- GMC Yukon XL 2500 (2000-2013)
- GMC Sierra 2500 (1999-2004)
- GMC Sierra 1500 HD (2001-2003, 2005-2006)
- GMC Savana 2500 (2003-2020)
- Chevrolet Suburban 2500 (2000-2013)
- Chevrolet Silverado 2500 (1999-2013)
- Chevrolet Silverado 1500 HD (2001-2003, 2005-2006)
- Chevrolet Express 2500 (2003-2020)
- Chevrolet Avalanche 2500 (2002-2006)
- Cadillac DeVille (2000-2005)
