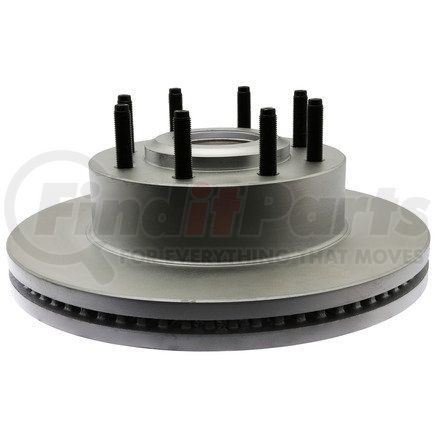

(888) 312-8812 Login SignupCENTRIC 320.65140F Centric GCX Rotor with Full Coating
$24199
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
CENTRIC 320.65140F Part Description
CENTRIC 320.65140F Specifications
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Hat Id [cntrc] Mm | 206.200 |
| Hat Id [cntrc] In | 8.118 |
| Inner Seal # [cntrc] | 417.65024 |
| Inner Bearing # [cntrc] | 415.67007 |
| Inner Race # [cntrc] | 416.65008 |
| Outer Bearing # [cntrc] | 415.63000 |
| Outer Race # [cntrc] | 416.63001 |
| Weight [cntrc] Kgs | 28.260 |
| Weight [cntrc] Lbs | 62.300 |
| OEM Vane Count [cntrc] | 67 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 36.400 MM |
| Discard Thickness | 1.433 IN |
| Nominal Thickness | 38.000 MM |
| Nominal Thickness | 1.496 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 115.700 MM |
| Overall Height | 4.555 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 363.000 MM |
| Rotor Outside Diameter | 14.291 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 125.000 MM |
| Center Hole Diameter | 4.921 IN |
| Mounting Bolt Hole Circle Diameter | 170.000 MM |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Stud/Lug Hole Quantity | 8 |
CENTRIC 320.65140F Cross References
CENTRIC 320.65140F Fits Vehicles
- Ford F-350 Super Duty (2012-2022)
- Ford F-250 Super Duty (2012-2022)
