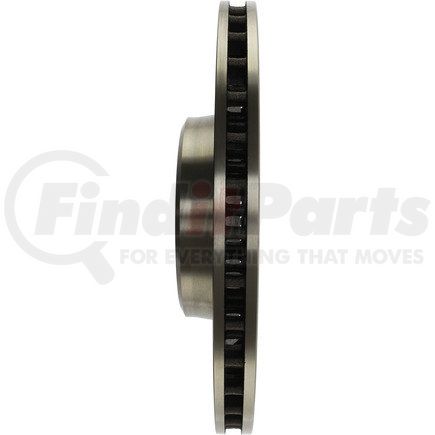

Centric 121.52003 - C-Tek Standard Brake Rotor
$12349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 164.200 |
| Weight [cntrc] Kgs | 9.920 |
| OEM Vane Count [cntrc] | 111 |
| Product Grade [cntrc] | Standard |
| Vane Style [cntrc] | Pillar |
| Misc Holes [cntrc] | 5 |
| Hat Id [cntrc] In | 6.465 |
| Weight [cntrc] Lbs | 21.850 |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28.000 MM |
| Overall Height | 2.382 IN |
| Overall Height | 60.500 MM |
| Outside Diameter | 365.000 MM |
| Outside Diameter | 14.370 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.760 IN |
| Center Hole Diameter | 70.100 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.654 IN |
| Stud/Lug Hole Diameter | 16.600 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590334098 |
Part Interchanges
Fits Vehicles
- Tesla S (2016-2021)
- Tesla X (2017-2021)
