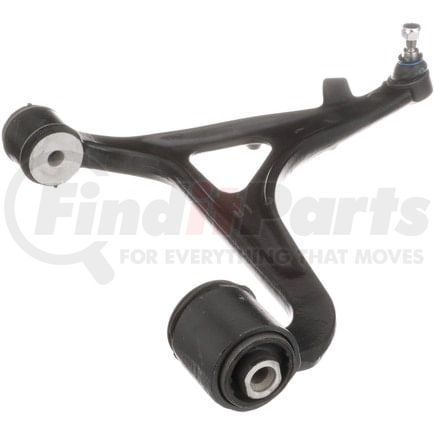

(888) 312-8812 Login SignupDELPHI TC5802 Control Arm and Ball Joint Assembly
Tap to view 13 more
$19299
Limited availability at this price!
In Stock
Get it by Monday, Dec 22
DELPHI TC5802 Part Description
DELPHI TC5802 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.307 IN |
| Control Arm Maximum Width | 84.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.866 IN |
| Ball Joint Stud Length | 22.00 MM |
| Control Arm Maximum Length | 16.996 IN |
| Control Arm Maximum Length | 431.70 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604313909 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5802 Part Interchanges
| Brand | Part Number |
|---|---|
| Mercedes-Benz | 203 330 03 07 |
| TRW | JTC2632 |
| Dorman | 524-079, CB28393, CB28393PR |
| N/A | A 203 330 03 07, RK622163, CMS101427, GS101427 |
DELPHI TC5802 Fits Vehicles
- Mercedes-Benz C320 (2003-2005)
- Mercedes-Benz C280 (2006-2007)
- Mercedes-Benz C350 (2006-2007)
- Mercedes-Benz C240 (2003-2005)
