DELPHI TC5604 Part Description
Manufacturer
Product Description

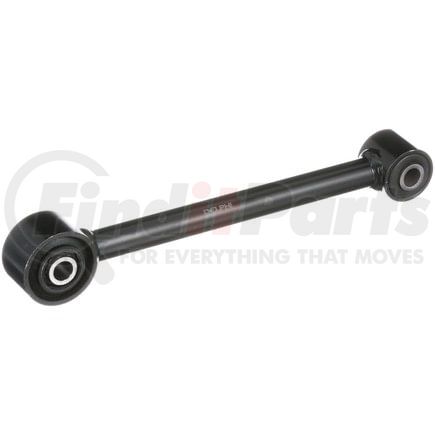

Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5604 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear |
| Material | Outer Sleeve - Steel |
| Bushing Outside Diameter | 26.50 MM |
| Bushing Color | Black |
| Length | 238.00 MM |
| Length | 9.370 IN |
| Bushings Included | Yes |
| Dust Boot Included | No |
| Sleeve Inside Diameter | 12.5 MM |
| Sleeve Length | 20 MM |
| Width | 28 MM |
| Width | 1.102 IN |
| Washers Included | No |
| Height | 1.614 IN |
| Height | 41.00 MM |
| Grade Type | Performance |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Weight | 0.8 lb |
| Bushing Material | Rubber |
| Distance Between Mounting Holes | 201.00 MM |
| Locking Nuts Included | No |
| Bushing Inside Diameter | 23.50 MM |
| Bushing Outside Diameter | 1.040 IN |
| Sleeve Inside Diameter | 0.49 IN |
| Sleeve Length | 0.79 IN |
| Bushing Inside Diameter | 0.930 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604305492 |
| VMRS Code | 016007000 |
| UNSPSC | 25172001 |
DELPHI TC5604 Cross References
DELPHI TC5604 Fits Vehicles
- Oldsmobile Bravada (1996-2001)
- GMC Jimmy (1995-2001)
- Chevrolet Blazer (1995-2005)
