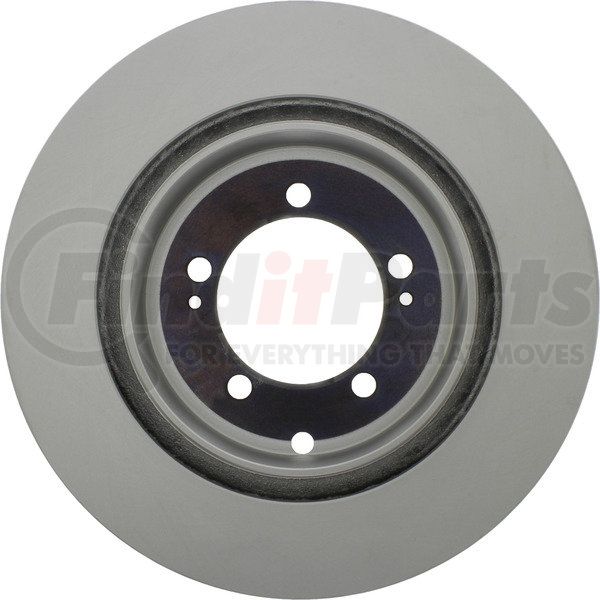

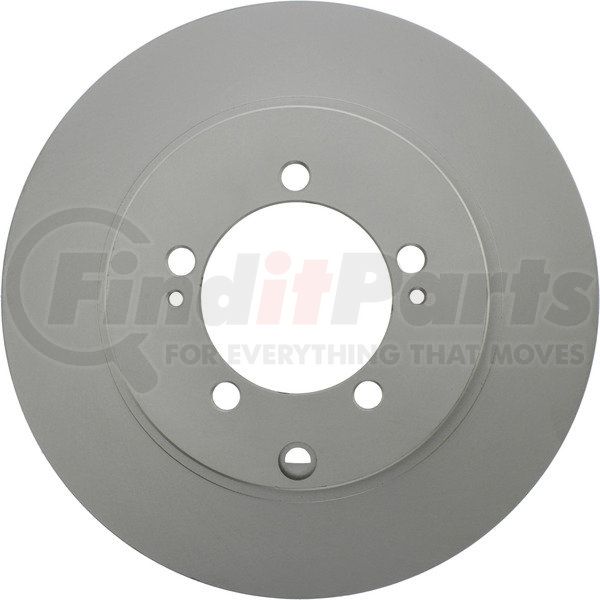

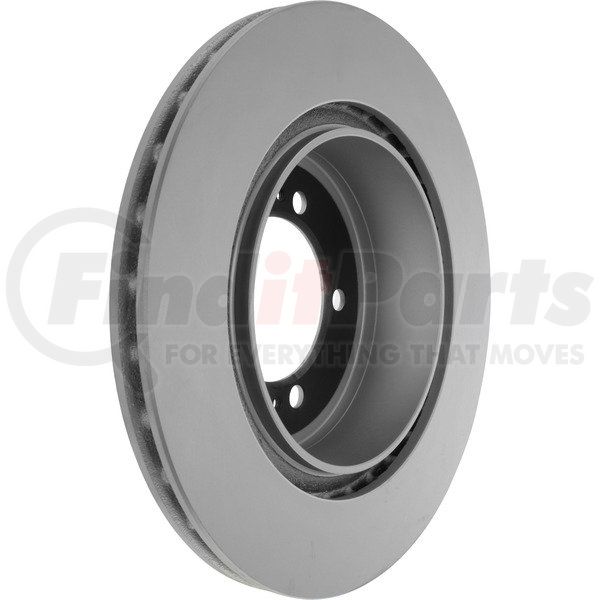

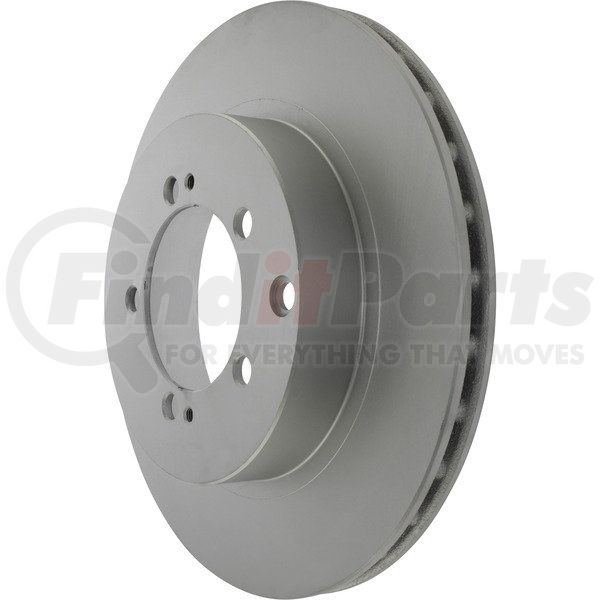

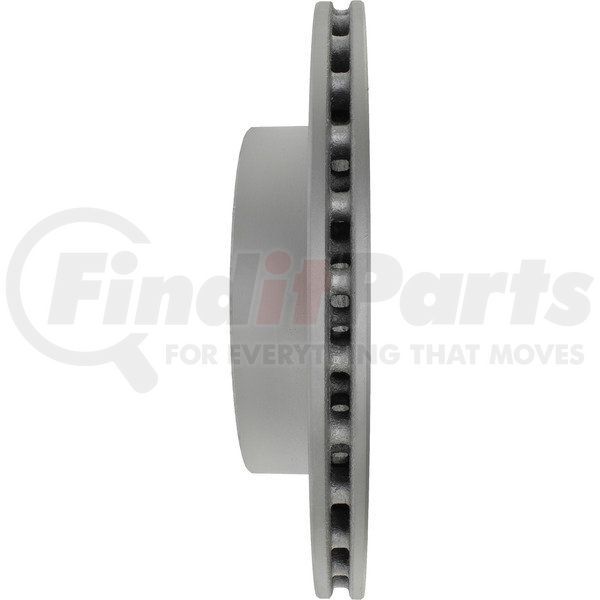

Centric 320.46065H - Centric GCX Rotor with Full Coating and High Carbon Content
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 7.050 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] In | 6.654 |
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Lbs | 15.500 |
| Vane Style [cntrc] | Pillar |
| Max Pb Drum Dia [cntrc] Mm | 169.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 20.400 MM |
| Discard Thickness | 0.803 IN |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 57.500 MM |
| Overall Height | 2.264 IN |
| Outside Diameter | 300.000 MM |
| Outside Diameter | 11.811 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 167.800 MM |
| Nominal Drum Diameter | 6.606 IN |
| Bearings Included | No |
| Center Hole Diameter | 3.543 IN |
| Center Hole Diameter | 90.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590390216 |
Part Interchanges
CENTRIC 320.46065H Cross Reference
We have 1 alternatives for the 320.46065H by CENTRIC:
Fits Vehicles
- Mitsubishi Lancer (2003-2006)
