(888) 312-8812 Login SignupCENTRIC 320.35045F Centric GCX Rotor with Full Coating
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.35045F Part Description
Manufacturer
Product Description

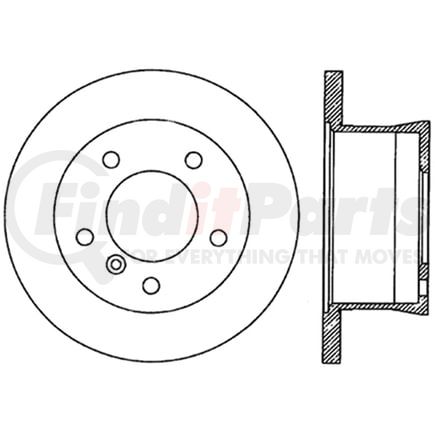

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.35045F Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Lbs | 15.820 |
| Weight [cntrc] Kgs | 7.190 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Discard Thickness | 0.551 IN |
| Discard Thickness | 14.000 MM |
| Nominal Thickness | 16.000 MM |
| Nominal Thickness | 0.630 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 96.700 MM |
| Overall Height | 3.807 IN |
| Outside Diameter | 272.000 MM |
| Outside Diameter | 10.709 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 6.299 IN |
| Nominal Drum Diameter | 160.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 3.346 IN |
| Center Hole Diameter | 85.000 MM |
| Mounting Bolt Hole Circle Diameter | 130.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.000 MM |
| Stud/Lug Hole Diameter | 0.591 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590387902 |
CENTRIC 320.35045F Cross References
CENTRIC 320.35045F Fits Vehicles
- Freightliner Sprinter 2500 (2002-2006)
- Freightliner Sprinter 3500 (2002-2005)
- Mercedes-Benz Sprinter (2007-2012)
- Dodge Sprinter 3500 (2003-2005)
- Dodge Sprinter 2500 (2003-2006)
- Mercedes-Benz G500 (2002-2007)
